Order Information

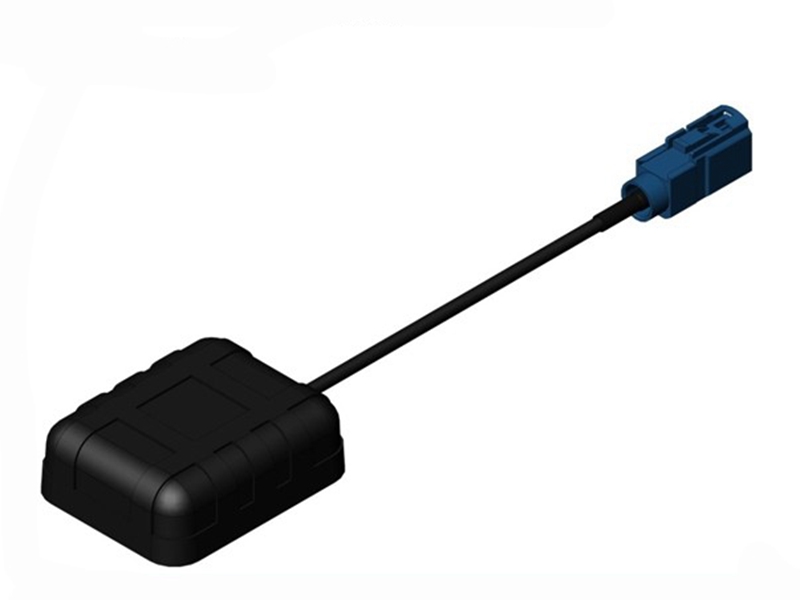

KLS1- GPS 16 – 010 3000

GPS: Antenna Frequency 1568±1MHz
Con. Code: 010: SMA-J Connector
011: RP SMA-J
020: SMB-J
030: MCX-J
040: MMCX-J
050: FAKRA-J
3000: Cable Lenges

Specification:
Antenna
Center Frequency:1561.098~1575.42±1MHz
Polarization:RHCP
Gain:3dBic（Zenith）
V.S.W.R:＜1.5
Impendance:50Ω
Axial Ratio:3dB（max）
Dimension:25*25*6mm

LAN
Gain:28±2dB
Noise Figure:＜2
Filter Insertion Loss:＜3dB
Ex-band Attenuation:30dB@CF±50MHz/45dB@CF±50MHz
Supply Voltage:3~5V DC
Current Consumption:10~20mA
V.S.W.R:＜2.0
Cable:RG174
Connector:SMA/MCX/FAKRA or others
Radome Material:ABS
Mounting Method:Magnet
Environmental:Operating Temperature :-40℃~+85℃
