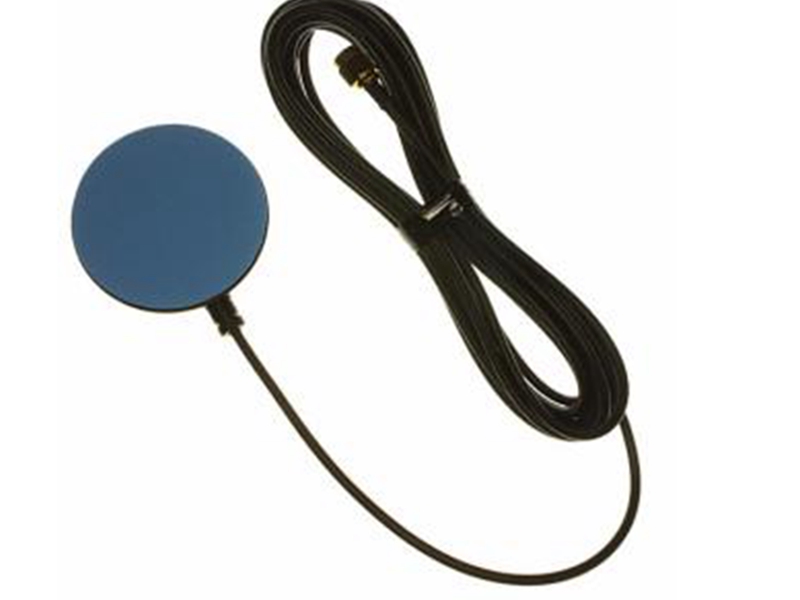

Order Information
KLS1- GPS 15 – 010 3000

GPS: Antenna Frequency 1568±1MHz
Con. Code: 010: SMA-J Connector
011: RP SMA-J
020: SMB-J
030: MCX-J
040: MMCX-J
050: FAKRA-J
3000: Cable Lenges

Specification:
Antenna
Center Frequency:1568±1MHz
Band Width:CF±10MHz
Polarization:RHCP
Gain:5dBic（Zenith）
V.S.W.R:＜1.5
Impendance:50Ω
Axial Ratio:3dB（max）
Dimension:35*35*3mm

LAN
Gain:28±2dB
Noise Figure:＜1.5
Filter Insertion Loss:＜3dB
Ex-band Attenuation:35dB@CF±50MHz/50dB@CF±100MHz
Supply Voltage:2.2~5V DC
Current Consumption:12~26mA
V.S.W.R:＜2.0
Cable:RG174
Connector:SMA/MCX/FAKRA or others
Radome Material:ABS
Mounting Method:Magnet
Environmental:Operating Temperature :-40℃~+85℃

KLS1-GPS15.pdf
