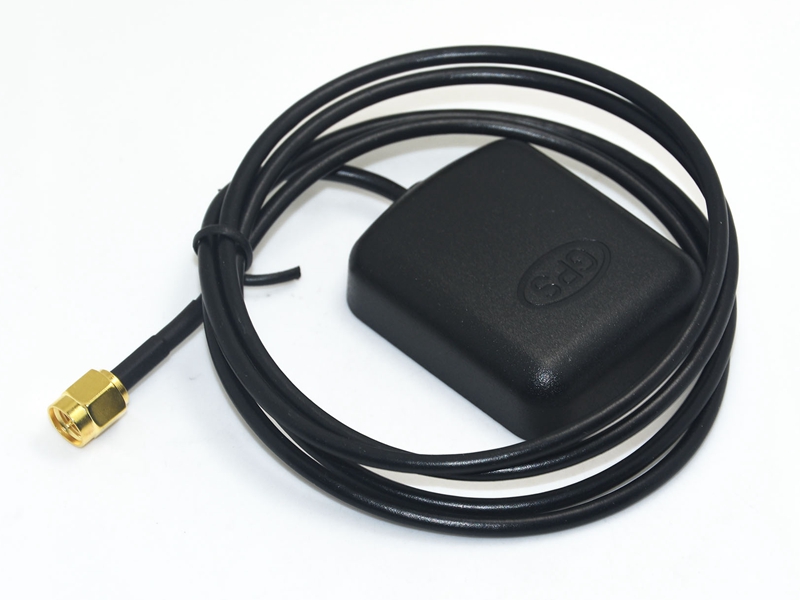

GPS Aerial Antenna

  • Model: KLS1-GPS10
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order Information
KLS1- GPS 10 – 010 3000

GPS: Antenna Frequency 1575.42±1MHz
Con. Code: 010: SMA-J Connector
011: RP SMA-J
020: SMB-J
030: MCX-J
040: MMCX-J
050: FAKRA-J
3000: Cable Lenges

Specification:
Antenna
Center Frequency:1575.42±1MHz
Band Width:CF±5MHz
Polarization:RHCP
Gain:5dBic(Zenith)
V.S.W.R:<1.5
Impendance:50Ω
Axial Ratio:3dB(max)
Dimension:25*25*4mm

LAN
Gain:28±2dB
Noise Figure:<1.5
Filter Insertion Loss:<3dB
Ex-band Attenuation:12dB@CF+50MHz/16dB@CF-50MHz
Supply Voltage:2.2~5V DC
Current Consumption:5~15mA
V.S.W.R:<2.0
Cable:RG174
Connector:SMA/MCX/FAKRA or others
Radome Material:ABS
Mounting Method:Magnet
Environmental:Operating Temperature :-40℃~+85℃
