Summary:

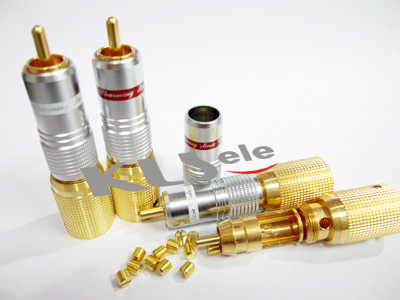

. High Performance Audio RCA Connectors
(Eutectic cast brass central pin/Locking Collet type)
Connector Type | Mono,Phono (RCA) Plug |
Plug/Mating Plug Diameter | 3.20mm ID |
Internal Switch(s) | Does Not Contain Switch |
Mounting Type | Free Hanging (In-Line) |
Termination | Solder |
Color | Black,Red,Green,Blue…… |
Color – Contact | Gold |
Packaging | Bulk |
Contact Material | Brass |
Contact Material – Plating | Gold |
Specifications 1:
. Specified for cable diameters up to 6.5mm,7.5mm,8.5mm
. Dimensions: 11.5mm ± 0.1 diameter x 45mm ± 1.00mm overall length
Specifications 2:
. Specified for cable diameters up to 15mm
. Dimensions: 17mm ± 0.2mm diameter x 67mm ± 1.00mm overall length
Remark: Optional Color Optional and Cable O.D Optional
