Specifications
Antenna
Frequency: GPS L1/L2
GLONASS L1/L2
COMPASS B1/B2/B3
Galileo E5b/E6
Polarization: RHCP
Axial Ratio: ≤3dB
V.S.W.R: ≤1.5
Peak Gain: ≥5dBi
Impedance: 50Ω
Phase Center Error: ±2mm
Horizontal coverage angle: 360°

LNA
Gain: 40±2dB
Noise Figure: ≤1.5dB
Passband fluctuation: ±1dB
Supply Voltage: 3~5.5V DC
Current Consumption: ≤45mA
V.S.W.R: ≤2.0

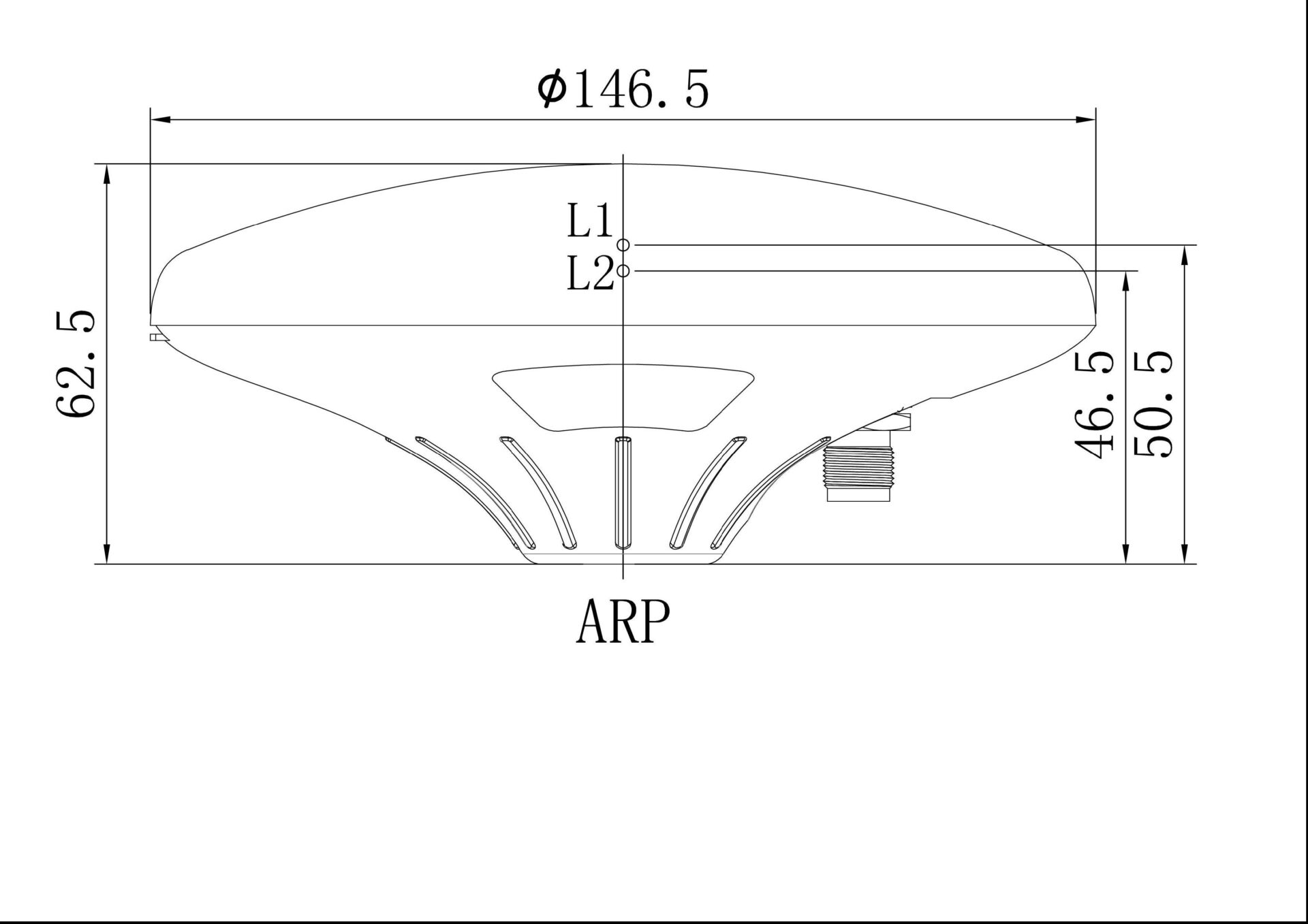

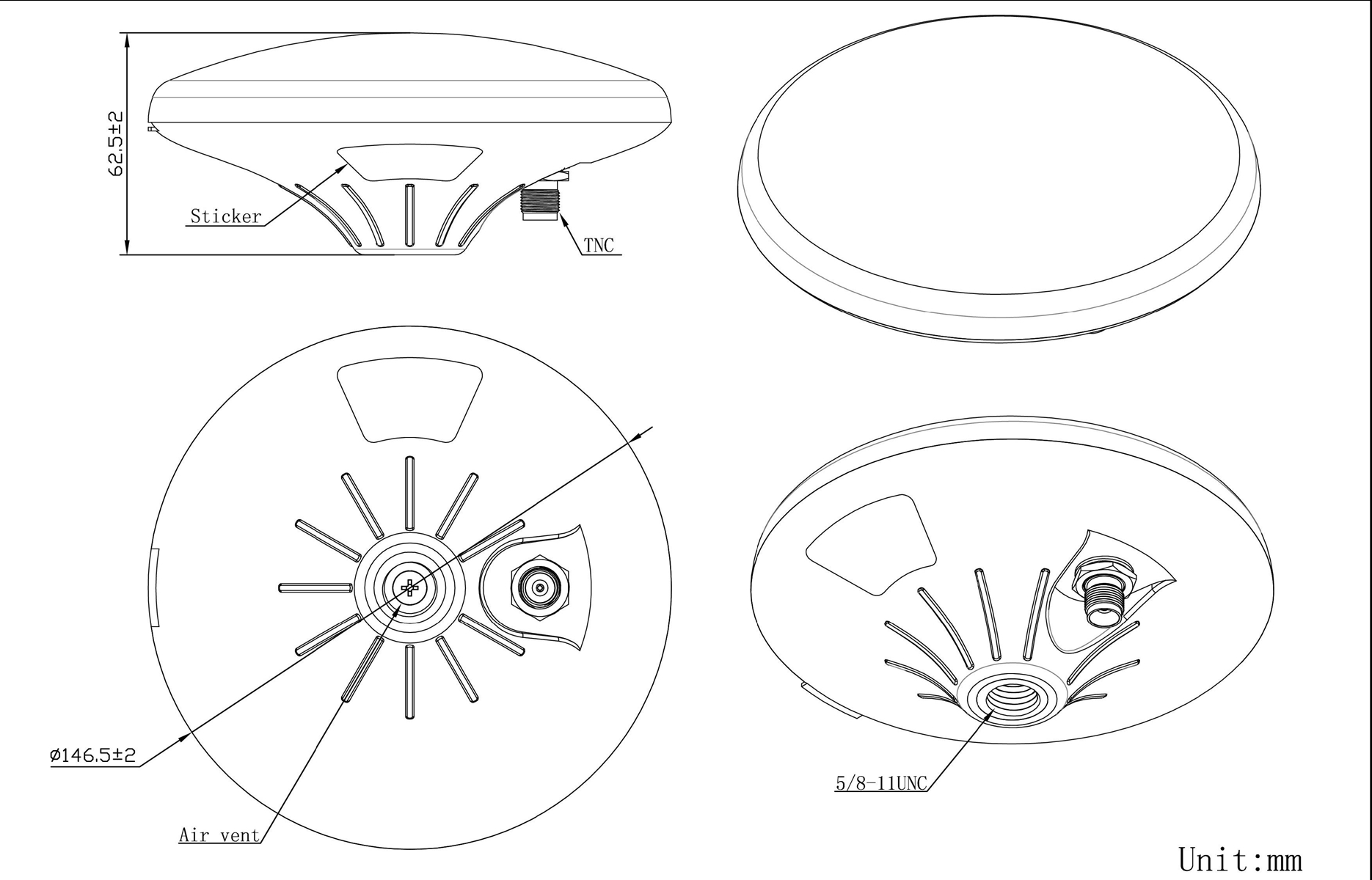

Mechanical
Connector: TNC-K
Radome Material: ABS
Mounting Method: Screw

Environmental
Operating Temperature: -40℃~+85℃
Relative Humidity: Up to 95%
Ingress Protection: IP67 (exclude Air vent in screw hole)
Environmentally Friendly: ROHS Comp
