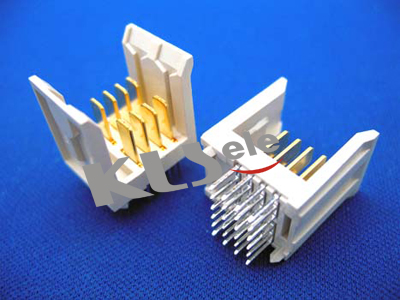

Future Bus connector (4 Row,Male Power Straight)

  • Model: KLS1-FUB3
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

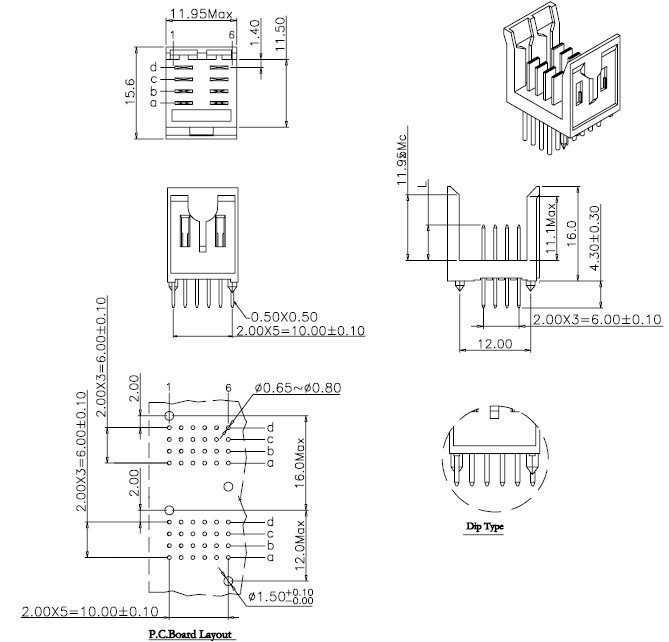

2.0mm Future Bus connector (4 Row,Solder Type,Male Power,Dip 180)

Material:
Housing: LCP UL94V~0
Contacts:  Male-Brass / Female-Phosphor Bronze

Electrical Characteristics:
Current Rating:  Signal-1 AMP / Power-3 AMP
Withstanding Voltage: AC 500V for 1 minute
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max.
Operating Temperature: -55ºC~+125ºC
