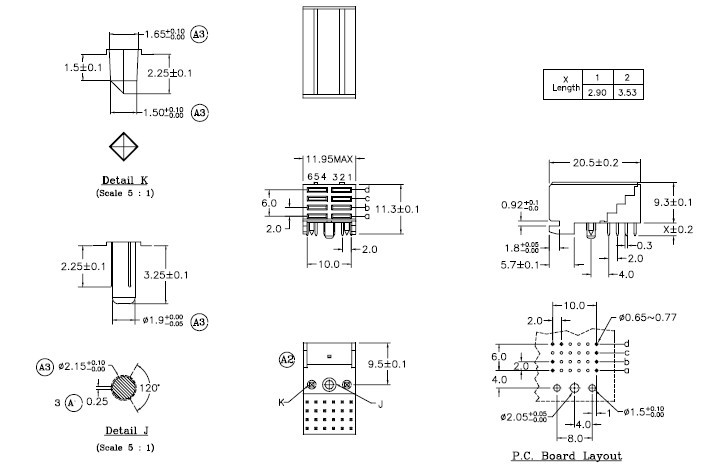

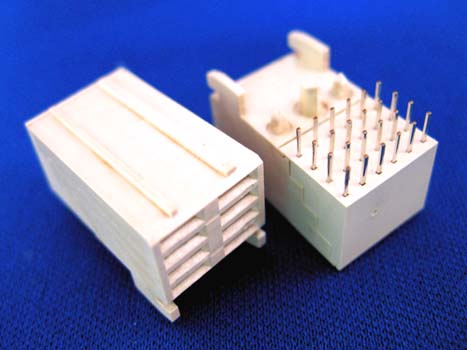

2.0mm Future Bus connector (4 Row,Press-Fit Type,Female Power,Dip 90)

Material:
Housing: LCP UL94V~0
Contacts:  Male-Brass / Female-Phosphor Bronze

Electrical Characteristics:
Current Rating:  Signal-1 AMP / Power-3 AMP
Withstanding Voltage: AC 500V for 1 minute
Insulator Resistance: 1000M Ohm min. at DC 500V
Contact Resistance: 30m Ohm max.
Operating Temperature: -55ºC~+125ºC

KLS1-FUB4.pdf
