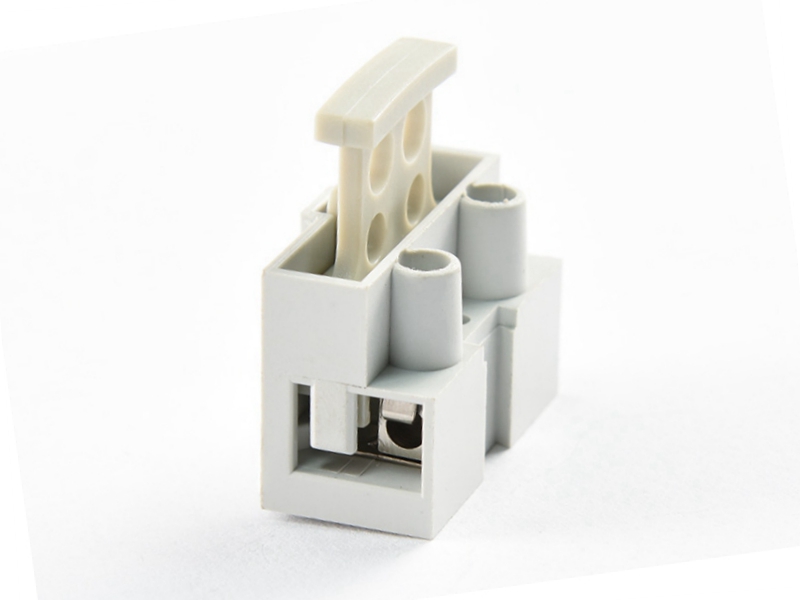

Fuse Terminal Block

Electrical :
Rated voltage: 250V
Rated current: 10A
Contact resistance: 20mΩ
Insulation resistance: 5000MΩ/1000V
Withstanding Voltage: AC2500V/1Min
Wire range: 18-12AWG 2.5mm²

Material
Screws: M3 steel Zinc plated
Contact: Brass
Pin header: Brass, Ni plated
Housing: PA66, UL94V-0

Mechanical
Temp. Range: -40ºC~+105ºC
MAX Soldering: +250ºC for 5 Sec.
Torque: 0.5Nm (4.5lb.in)
Strip length: 7-8mm

KLS2-510EW-1P.pdf
