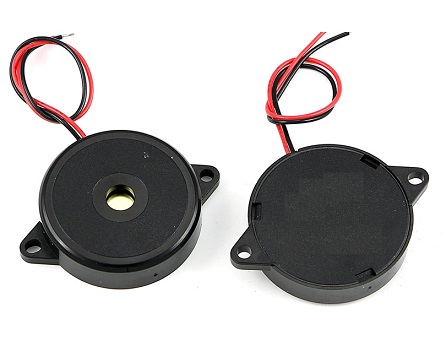

Externally driven piezo buzzer with wire

  • Model: KLS3-LPT-35*8.5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Externally driven piezo buzzer with wire,Top sound

Resonance Frequency : 1.1±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 10 Vp-p (3Vp-p~12Vp-p Customizable)
Current Consumption: 9mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 5g
Housing Material: ABS

Size:
