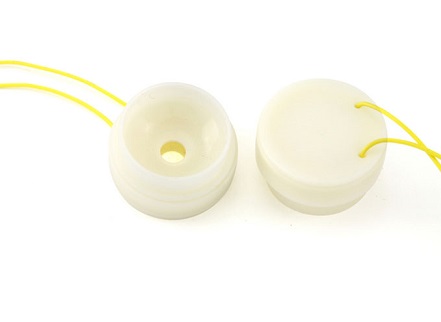

Externally driven piezo buzzer with wire,Top sound

Resonance Frequency : 3.4±0.5KHz
Max.Allowable Voltage: 28 Vp-p
Rated Voltage: 9 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 18mA Max.at Rated Voltage
Sound Pressure Level: 95dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 6g
Housing Material: ABS

Size:

KLS3-LPT-30x16.pdf
