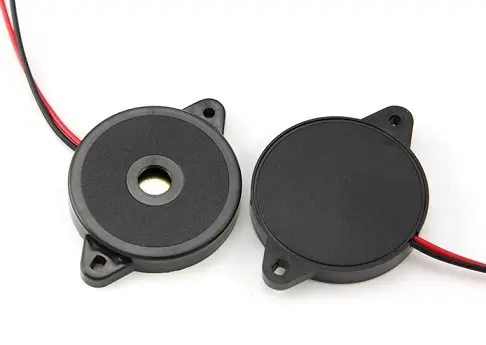

Externally driven piezo buzzer with wire,Top sound

Resonance Frequency : 4.5±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 12 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 3.5mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 3g
Housing Material: ABS

Size:

KLS3-LPT-30x5.7.pdf
