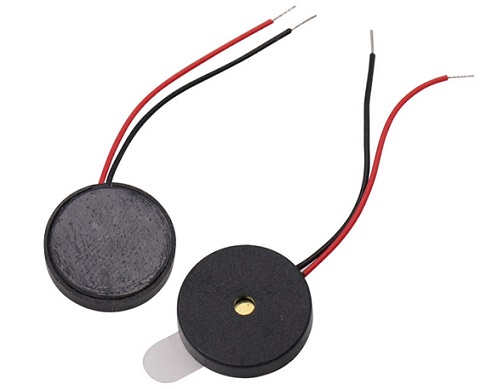

Externally driven piezo buzzer with wire
- Product Details
Externally driven piezo buzzer with wire,Top sound
Resonance Frequency : 4.0±0.5KHz
Max.Allowable Voltage: 25 Vp-p
Rated Voltage: 5 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 5mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 0.3g
Housing Material: ABS
Size:
| Order Code | Operating Voltage | Resonant Frequency | Max.Rated Current | Min.S.P.L.（@10cm） | Rated Voltage |
| KLS3-LPT-13*2.5-A | 3…20Vp-p | 4.0±0.5KHz | 2mA | 70dB | 5Vp-p |
| KLS3-LPT-13*2.5-B | 3…20Vp-p | 4.0±0.5KHz | 4mA | 80dB | 10Vp-p |
