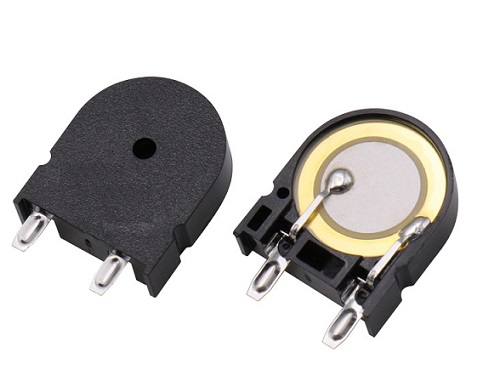

Externally driven piezo buzzer
- Product Details
Externally driven piezo buzzer,Top sound
Resonance Frequency : 2.0±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 3 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 5mA Max.at Rated Voltage
Sound Pressure Level: 75dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 2000±30% pF
Operating Temp: -40~+85°C
Weight: 2.5g
Housing Material: PBT
Size:
| Order Code | Operating Voltage | Resonant Frequency | Max.Rated Current | Min.S.P.L.（@10cm） | Rated Voltage |
| KLS3-PT-22*07-A | 30Vp-p | 2.0±0.5KHz | 5mA | 75dB | 3Vp-p |
| KLS3-PT-22*07-B | 30Vp-p | 2.0±0.5KHz | 4mA | 80dB | 9Vp-p |
