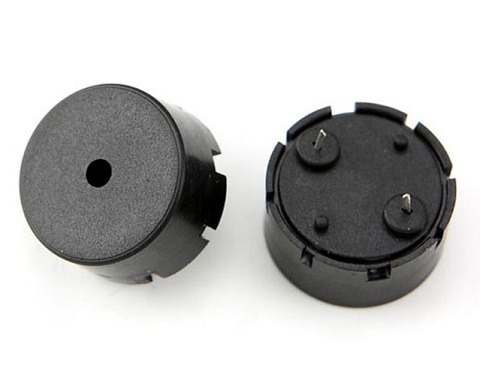

Externally driven piezo buzzer

  • Model: KLS3-PT-17*08
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Externally driven piezo buzzer,Top sound

Resonance Frequency : 4.0±0.5KHz
Max.Allowable Voltage: 25 Vp-p
Rated Voltage: 9 Vp-p (3Vp-p~12Vp-p Customizable)
Current Consumption: 3mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 1400±30% pF
Operating Temp: -40~+85°C
Weight: 1.0g
Housing Material: PPO

Size:

Order Code                    Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.(@10cm) Rated  Voltage
KLS3-PT-17*08-A 1…25Vp-p 4.0±0.5KHz 1mA 80dB 5Vp-p
KLS3-PT-17*08-B 1…25Vp-p 4.0±0.5KHz 3mA 80dB 9Vp-p
