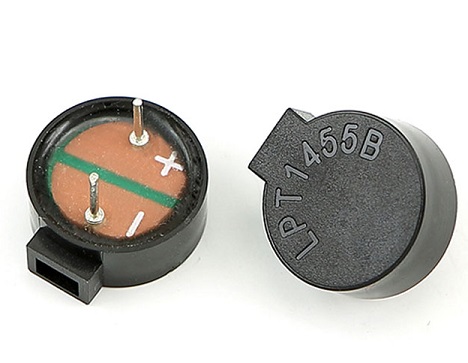

Externally driven piezo buzzer,Side sound

Resonance Frequency : 3.5±0.5KHz
Max.Allowable Voltage: 25 Vp-p
Rated Voltage: 5 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 5mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 1200±30% pF
Operating Temp: -40~+85°C
Weight: 0.65g
Housing Material: PPO

Size:

KLS3-PT-14x06.pdf
