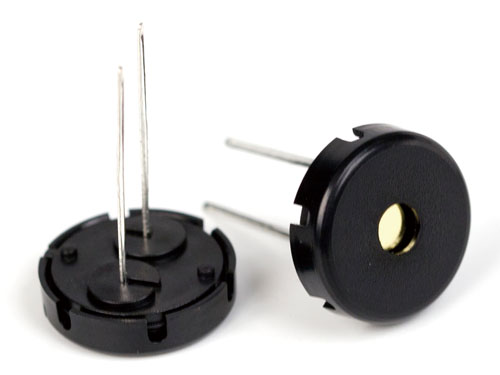

Externally driven piezo buzzer,Top sound

Resonance Frequency : 4.0±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 3 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 3mA Max.at Rated Voltage
Sound Pressure Level: 60dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 12000±30% pF
Operating Temp: -40~+85°C
Weight: 1.0g
Housing Material: PPO

Size:

KLS3-PT-12x3.5.pdf
