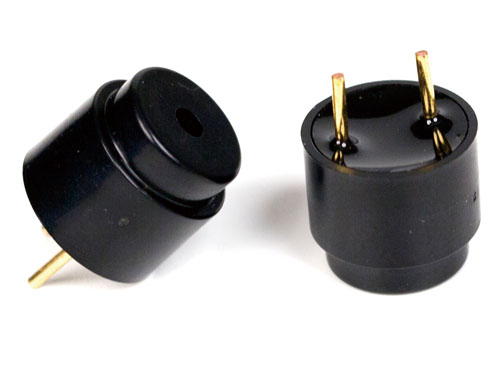

Externally driven piezo buzzer,Top sound

Resonance Frequency : 2.8±0.5KHz
Max.Allowable Voltage: 30 Vp-p
Rated Voltage: 10 Vp-p （3Vp-p~12Vp-p Customizable）
Current Consumption: 4mA Max.at Rated Voltage
Sound Pressure Level: 75dB Min at Rated Voltage at 10cm
Electrostatic Capacity: 5600±30% pF
Operating Temp: -40~+85°C
Weight: 0.5g
Housing Material: PPO

Size:

KLS3-PT-09x08.pdf
