Externally Driven Magnetic Buzzers

Home > Products > Sound sources > Externally Driven Magnetic Buzzers > Details

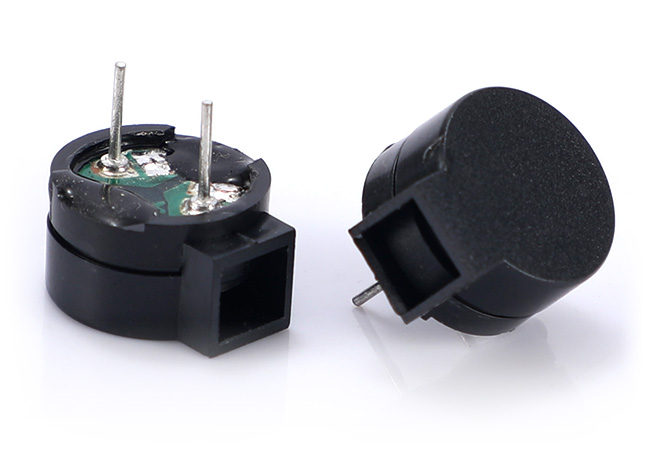

Externally driven magnetic buzzers

  • Model: KLS3-MT-12*7.5
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details
  • PDF

Externally driven magnetic buzzers,Side sound

Resonance Frequency : 2.731KHz
Operating Voltage: 1~3 Vo-p
Rated Voltage: 1.5 Vo-p
Current Consumption: 70mA Max.at Rated Voltage
Sound Pressure Level: 80dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 1.2g
Housing Material: PPO

Size:

Order Code                    Operating Voltage Resonant Frequency Max.Rated Current Min.S.P.L.（@10cm） Rated  Voltage
KLS3-MT-12*7.5-A 1~2V 2731Hz 70mA 80dB 1.5V
KLS3-MT-12*7.5-B 1~2V 2048Hz 40mA 70dB 1.5V

PDF

KLS3-MT-12x7.5.pdf
