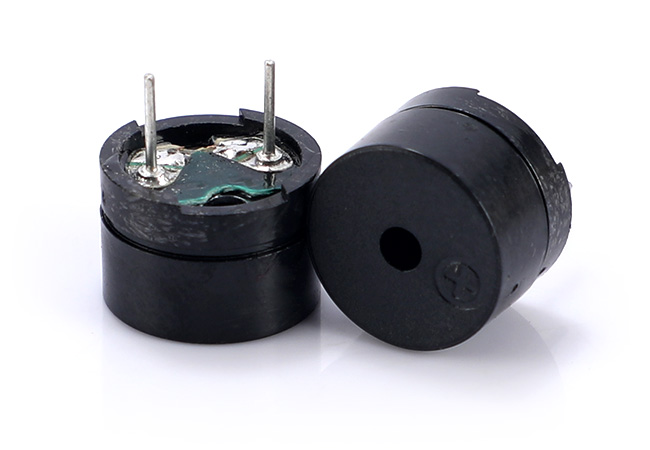

Externally driven magnetic buzzers
- Product Details
Externally driven magnetic buzzers,Top sound
Resonance Frequency : 2.048KHz
Operating Voltage: 1~3 Vo-p
Rated Voltage: 1.5 Vo-p
Current Consumption: 30mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 1.0g
Housing Material: PPO
Size:
| Order Code | Operating Voltage | Resonant Frequency | Max.Rated Current | Min.S.P.L.（@10cm） | Rated Voltage |
| KLS3-MT-12*8.5-A | 1~2V | 2048Hz | 30mA | 85dB | 1.5V |
| KLS3-MT-12*8.5-B | 1~2V | 2048Hz | 10mA | 80dB | 1.5V |
