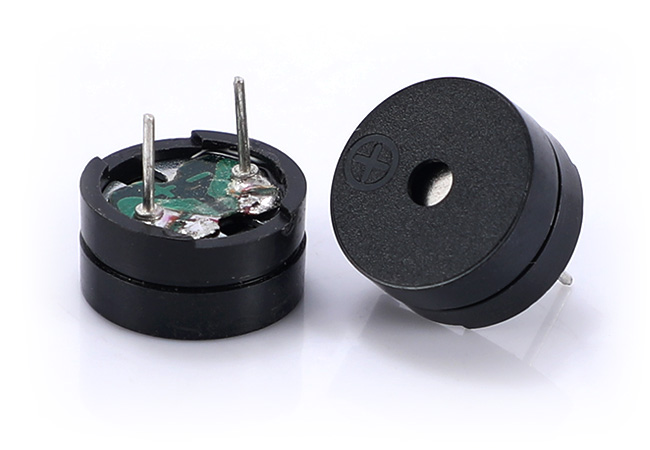

Externally driven magnetic buzzers,Top sound

Resonance Frequency : 2.048KHz
Operating Voltage: 1~3 Vo-p
Rated Voltage: 1.5 Vo-p
Current Consumption: 30mA Max.at Rated Voltage
Sound Pressure Level: 85dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 1.0g
Housing Material: PPO

Size:

KLS3-MT-12x6.5.pdf
