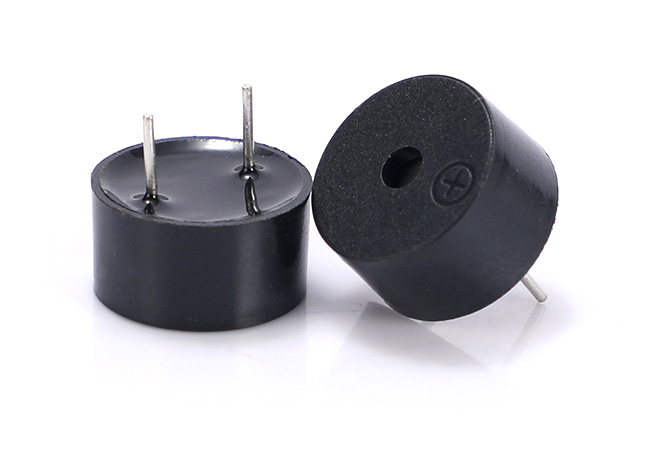

Externally driven magnetic buzzers
- Product Details
Externally driven magnetic buzzers,Top sound
Resonance Frequency : 2.731KHz
Operating Voltage: 4~6 Vo-p
Rated Voltage: 3 Vo-p
Current Consumption: 80mA Max.at Rated Voltage
Sound Pressure Level: 82dB Min at Rated Voltage at 10cm
Operating Temp: -40~+85°C
Weight: 1.0g
Housing Material: PPO
Size:
| Order Code | Operating Voltage | Resonant Frequency | Max.Rated Current | Min.S.P.L.（@10cm） | Rated Voltage |
| KLS3-MT-09*5.5-A | 1~2V | 3100Hz | 80mA | 80dB | 1.5V |
| KLS3-MT-09*5.5-B | 4~6V | 2731Hz | 80mA | 82dB | 3V |
