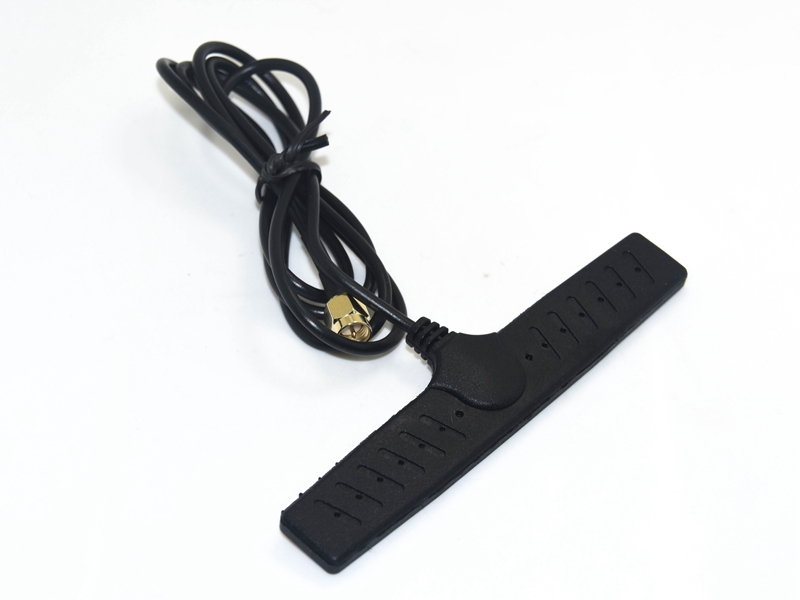

GSM Antenna For SMA

Order Information
KLS1-GSM-07-SMA-FS-RG174-3000MM
Series-KLS1-GSM-07
Connector Type:SMA
FS: Female traight Connector MS: Male Straight Connector
Cable type:RG174, RG316, 1.13dia…etc,
Cable Length-3000,5000 or other
Specification:
Frequency : 824~960,1700~1990MHz
Gain : 2dBi
VSWR ≤ 2.0:1
Antenna Type: Flat Patch, 1/2 Wave
Mounting Type: Adhesive Mount
Standard Connector : SMA
Operating Temperature : -40°C to +80°C
