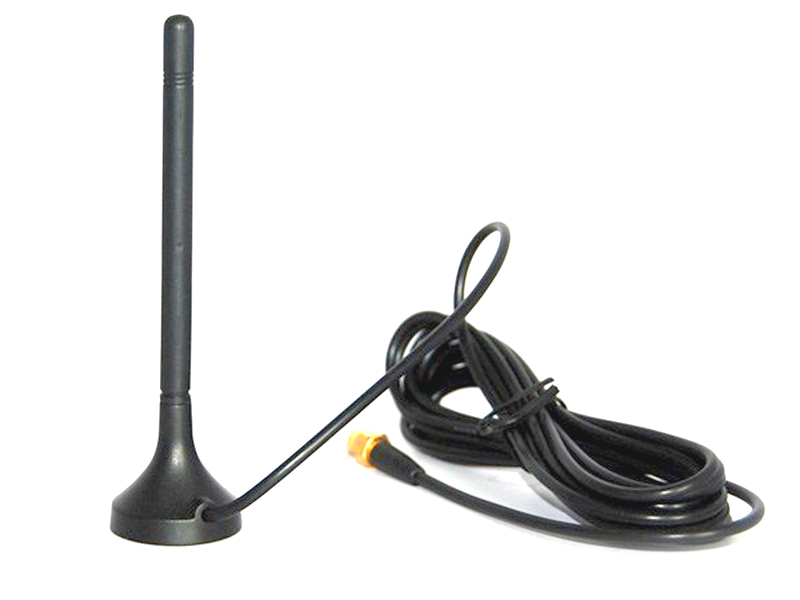

External Magnet Antenna GSM & 3G &4G

  • Model: KLS1-GSM06
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Order Information
KLS1- GSM06 010 110 3000

Antenna Frequency :
GSM: 890~960/1710~1880MHz
3G: 824~960/1710~2170MHz
4G: 1710~2650MHz
Con. Code: 010: Standard SMA Connector
Hight: 110- 110mm
3000: Cable Lenges

Specification:
Frequency : GSM: 890~960/1710~1880MHz
3G: 824~960/1710~2170MHz
4G: 1710~2650MHz
Gain : 2dBi
Vswr : 2.0 Max.
Impedance : 50 Ω
Polarization : Vertical
Radiation : OMNIDIRECTIONAL
Max power : 50W
Shell material : PVC
Size: ∅29.5x109mm
Connector : SMA or Other
Cable: RG174, Black
Length:3000mm or Other
Lightning protection: DC Grounding
Operating Temperature : -30°C to +70°C
