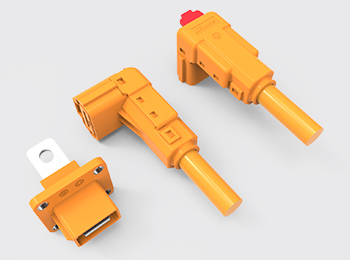

ES150 Serise High Voltage Connector and Headers
◎Sanco Battery High Voltage Connector Technology For Energy Storage System

◎A connector solution for the growing market of energy storage systems

◎Considering the safety, Reliability, operational efficiencies, Conserve space and other factors

◎Low application cost, solving the problem of a large installation and aintenance cost for traditional terminal blocks and Busbar

◎It is a good choice for today’s new Energy Storage System

Electrical
Voltage Rating: 1500V
Current Rating: Up to 100A with T-Rise < 50K
Insulation Resistance :>500MΩ
Withstand Voltage:5500V DC
Environmental
Temperature Range: -40 to 125℃
IP Rating(Unmated) : IP2XB
