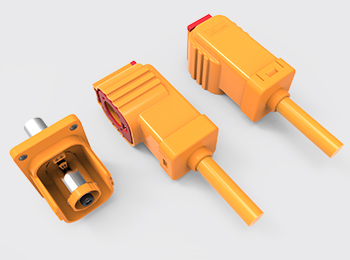

ES100 IP67 Waterproof Serise High Voltage Connector and Headers
◎Sanco Battery High Voltage Connector Technology For Energy Storage System
◎A connector solution for the growing market of energy storage systems
◎Considering the safety, Reliability, operational efficiencies, Conserve space and other factors
◎Low application cost, solving the problem of a large installation and aintenance cost for traditional terminal blocks and Busbar
◎It is a good choice for today’s new Energy Storage System

Electrical
Voltage Rating: 1000V
Current Rating: Up to 300A with T-Rise < 50K
Insulation Resistance :>500MΩ
Withstand Voltage:4000V DC
Environmental
Temperature Range: -40 to 125℃
IP Rating(Unmated) : IP2XB
IP Rating(Mated) : IP67, IP6k9k
