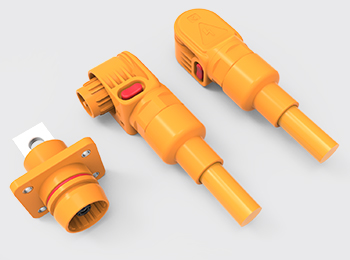

ES 090 L61 Serise High Voltage Connector

◎Sanco Battery High Voltage Connector Technology For Energy Storage System
◎A connector solution for the growing market of energy storage systems
◎Considering the safety, Reliability, operational efficiencies, Conserve space and other factors
◎Low application cost, solving the problem of a large installation and aintenance cost for traditional terminal blocks and Busbar
◎It is a good choice for today’s new Energy Storage System

Electrical
Voltage Rating: DC 1000V/AC 800V
Current Rating: 25mm -120A ,35mm2-150A , 50mm2-200A
Insulation Resistance: >500MΩ
Withstand Voltage: 3000V DC
Environmental
Temperature Range: -40 to 125℃
IP Rating(Unmated) : IPXXB
