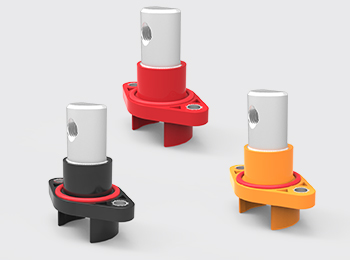

ES 080 IP67 Waterproof Serise High Voltage Connector

◎Sanco Battery High Voltage Connector Technology For Energy Storage System
◎A connector solution for the growing market of energy storage systems
◎Considering the safety, Reliability, operational efficiencies, Conserve space and other factors
◎Low application cost, solving the problem of a large installation and aintenance cost for traditional terminal blocks and Busbar
◎It is a good choice for today’s new Energy Storage System

Electrical
Voltage Rating: 400V AC
Current Rating: 250A
Insulation Resistance: >500MΩ
Withstand Voltage: 1800V AC
Environmental
Temperature Range: -40 to 125℃
IP Rating(Unmated) : IPXXB
IP Rating(Mated) : IP67
