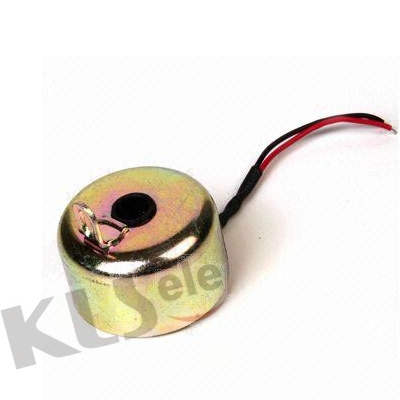

Energy Meter Current Transformer
With Thicker shielded metal case : 1.1 mm And with copper bracket (Other sizes can be OEM)
Application to single-phase or three-phase electronic type electric energy meter.
Main characteristics:
1. Adopt high magnetic permeability magnetic core,with high precision and good linearity.
2.The range of applicable electric current is wide(1.5A-120A)
3. Primary input and secondary output ensures flexible and diversified forms as well as easy installation.
4. Frequency: 50Hz/60Hz
5. Ambient Temperature: -40℃ — 70℃
6. With a complete range of specifications(See the following table for details),products can be made according to customers’ special requirements.

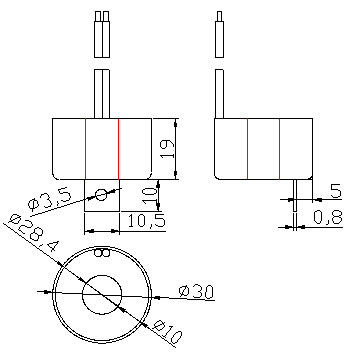

1.Dimension Data:
| CT | Main Dimension (mm) | Wire (mm) | |||
|---|---|---|---|---|---|
| A (Inner Hole) | B (Out Diameter) | C (Thickness) | Length | End Tinned | |
| 6A~60A | 10 | 30±1 | 19 | 100 | 5 |
| 80A~100A | 10 | 35±1 | 22.5 | 100 | 5 |
2. Specifications
| CT |
Current Rati
|
Ratio | Load Resistance(Ω) | Accuracy Class | Phase error | Insulation voltage | ||
|---|---|---|---|---|---|---|---|---|
| Model NO. | Turns | Turns | ||||||
| CT010 | 1.5(6A) | 1.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 2.5(10)A | 2.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 2.5(15)A | 2.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 5(20)A | 2.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 5(30)A | 2.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 5(40)A | 2.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 5(50)A | 2.5 / 5.0 | 1:2000 | 1:4000 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 5(60)A | 2.5 / 5.0 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 10(40)A | 5.0 / 10 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 10(60)A | 5.0 / 10 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 10(80)A | 5.0 / 10 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 10(100)A | 5.0 / 10 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 15(60)A | 5.0 / 10 | 1:2000 | 1:2500 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
| CT010 | 15(100)A | 5.0 / 10 | 1:2000 | 1:4000 | 5/10/20Ω | 0.1/ 0.2 | <15′ | 3000V |
