Energy Meter Current Transformer

  • Model: KLS11-CT-009
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

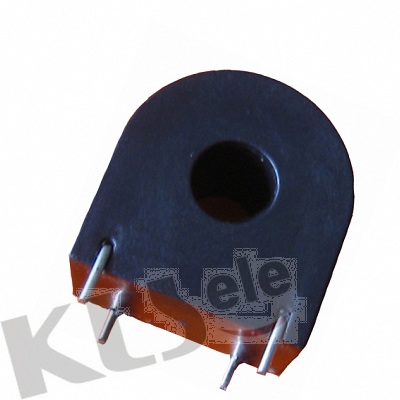

Energy Meter Current Transformer
Application to single-phase or three-phase electronic type electric energy meter.

Main characteristics:
1. Adopt high magnetic permeability magnetic core,with high precision and good linearity.
2.The range of applicable electric current is wide(1.5A-120A)
3. Primary input and secondary output ensures flexible and diversified forms as well as easy installation.
4. Frequency: 50Hz/60Hz
5. Ambient Temperature: -40℃ — 70℃
6. With a complete range of specifications(See the following table for details),products can be made according to customers’ special requirements.

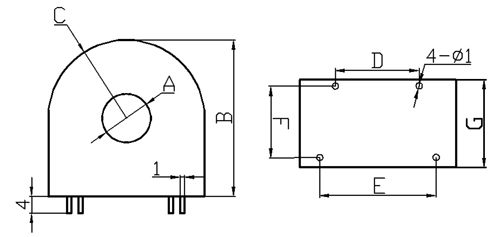

 CT Main Dimension (mm)
Model No. A (Inner Hole) B （High） C D E F G (thickness)
CT009A 8.6 27 13 15 19 16.2 17
CT009B 8.2 30 15 15 19.3 16.2 18
CT009C 9.5 30 15 20 20 10 18.5
CT009D 13 39 19 25 33 13 15

2. Specifications

CT
Current Rati
 Ratio Load Resistance(Ω) Accuracy Class  Phase error Insulation voltage
Model NO.
Primary Current
(A)

Secondary current( mA )

 Turns  Turns
CT009 1.5(6A) 1.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 2.5(10)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 2.5(15)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 5(20)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 5(30)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 5(40)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 5(50)A 2.5 / 5.0 1:2000 1:4000 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 5(60)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 10(40)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 10(60)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 10(80)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 10(100)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 15(60)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 15(100)A 5.0 / 10 1:2000 1:4000 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 20(80A) 10 / 20 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 20(100A) 10 / 20 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 20(120A) 10 / 20 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 30(100A) 15 / 30 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT009 30(120A) 15 / 30 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
