Energy Meter Current Transformer

  • Model: KLS11-CT-002
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
Inquiry
  • Product Details

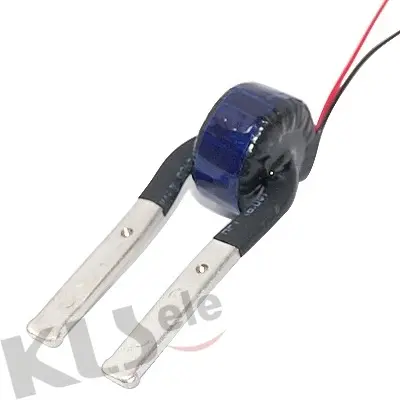

Energy Meter Current Transformer
With copper bracket (Other sizes can be OEM)

Application to single-phase or three-phase electronic type electric energy meter.

Main characteristics:
1. Adopt high magnetic permeability magnetic core,with high precision and good linearity.
2.The range of applicable electric current is wide(1.5A-120A)
3. Primary input and secondary output ensures flexible and diversified forms as well as easy installation.
4. Frequency: 50Hz/60Hz
5. Ambient Temperature: -40℃ — 70℃
6. With a complete range of specifications(See the following table for details),products can be made according to customers’ special requirements.

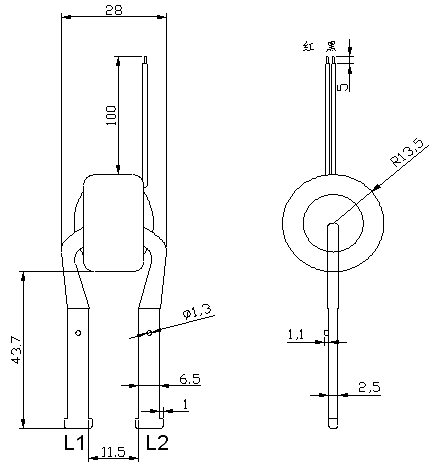

1.Current Transformer Dimension Data:

CT Main Dimension (mm) Wire (mm)
Primary Current
(A)
 A (Inner Hole) B (Out Diameter) C (Thickness) Length End Tinned
6A~40A 10±1 28±1 18 120 5
50A~80A 10±1 30±1 18 120 5
100A~120A 10±1 33±1 20 120 5

2. Specifications

CT
Current Rati
 Ratio Load Resistance(Ω) Accuracy Class  Phase error Insulation voltage
Model NO.
Primary Current
(A)

Secondary current( mA )

 Turns  Turns
CT002 1.5(6A) 1.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 2.5(10)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 2.5(15)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 5(20)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 5(30)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 5(40)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 5(50)A 2.5 / 5.0 1:2000 1:4000 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 5(60)A 2.5 / 5.0 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 10(40)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 10(60)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 10(80)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 10(100)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 15(60)A 5.0 / 10 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 15(100)A 5.0 / 10 1:2000 1:4000 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 20(80A) 10 / 20 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 20(100A) 10 / 20 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 20(120A) 10 / 20 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 30(100A) 15 / 30 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
CT002 30(120A) 15 / 30 1:2000 1:2500 5/10/20Ω 0.1/ 0.2 <15′ 3000V
