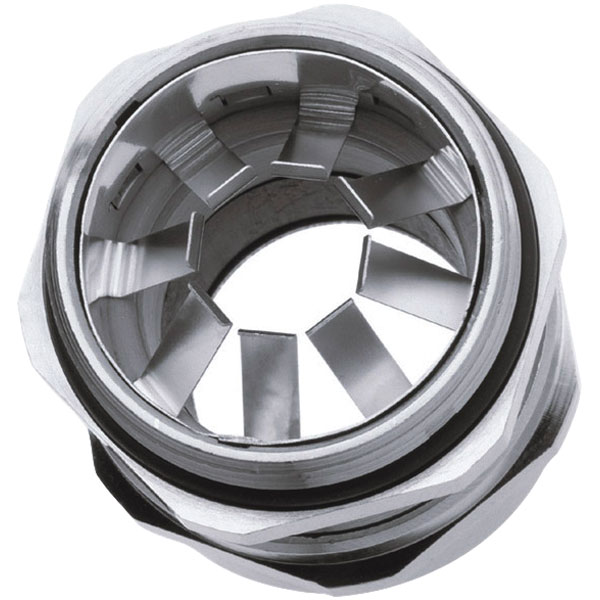

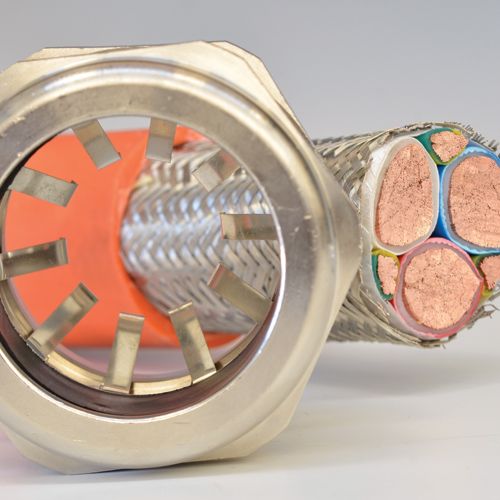

EMC PG-Long thread Type Metallic Cable Glands
- Product Details
Material: Brass with nickel plated
Claw: Nylon plastic(PA),UL94-V2
Sealing: NBR
O-Sealing ring:NBR
Protection Class: IP68 (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Range of temperature: -40℃~100℃
Oder Information
KLS8-0626A-PG-7
0626AL: EMC PG-Long thread Type Metallic Cable Glands
PG-7: Item No.
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| PG-7 | 3-6.5 | 12.5 | 12.5-12.7 | 10 | 18 | 14 |
| PG-9 | 4-8 | 15.2 | 15.2-15.4 | 10 | 20 | 17 |
| PG-11 | 5-10 | 18.6 | 18.6-18.8 | 10 | 21 | 20 |
| PG-13.5 | 6-12 | 20.4 | 20.4-20.6 | 10 | 22 | 22 |
| PG-16 | 10-14 | 22.5 | 22.5-22.7 | 10 | 23 | 24 |
| PG-21 | 13-18 | 28.3 | 28.3-28.5 | 12 | 25 | 30 |
| PG-29 | 18-25 | 37 | 37-37.2 | 12 | 30 | 40 |
| PG-36 | 22-32 | 47 | 47-47.2 | 15 | 35 | 50 |
| PG-42 | 32-38 | 54 | 54-54.2 | 15 | 38 | 57 |
| PG-48 | 37-44 | 59.3 | 59.3-59.5 | 15 | 40 | 64 |
