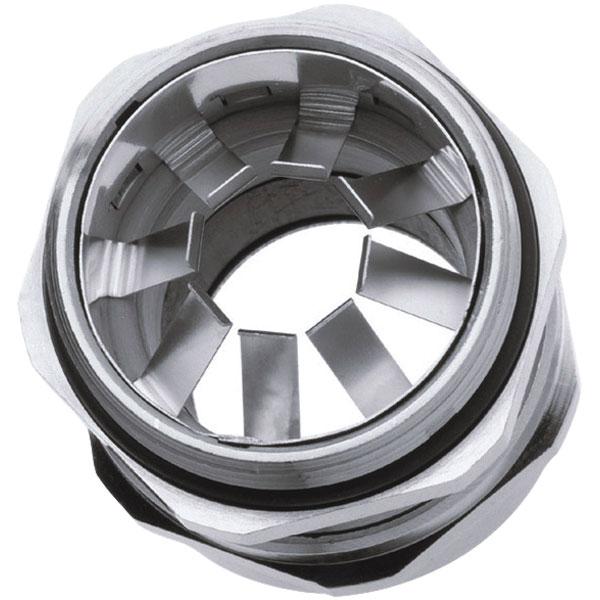

EMC NPT Type Metallic Cable Glands
- Product Details
Material: Brass with nickel plated
Claw: Nylon plastic(PA),UL94-V2
Sealing: NBR
O-Sealing ring: NBR
Protection Class: IP68 (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Range of temperature: -40℃~100℃
Oder Information
KLS8-0626N-NPT1/4
0626N: EMC NPT Type Metallic Cable Glands
NPT1/4: Item No.
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| NPT1/4 | 3-6.5 | 13.7 | 13.7~14 | 8 | 18 | 14 |
| NPT3/8 | 4-8 | 17 | 17~17.3 | 15 | 20 | 18 |
| NPT1/2 | 6-12 | 21.2 | 21.2~21.5 | 13 | 22 | 22 |
| NPT3/4 | 13-18 | 26.2 | 26.6~26.9 | 15 | 25 | 30 |
| NPT1 | 18-25 | 33.3 | 33.3~33.6 | 16 | 30 | 40 |
| NPT1_1/4 | 22-32 | 42 | 42~42.3 | 18 | 35 | 50 |
| NPT1_1/2 | 32-38 | 48 | 48~48.3 | 18 | 38 | 57 |
| NPT2 | 37-44 | 60 | 60~60.3 | 18 | 40 | 64 |
