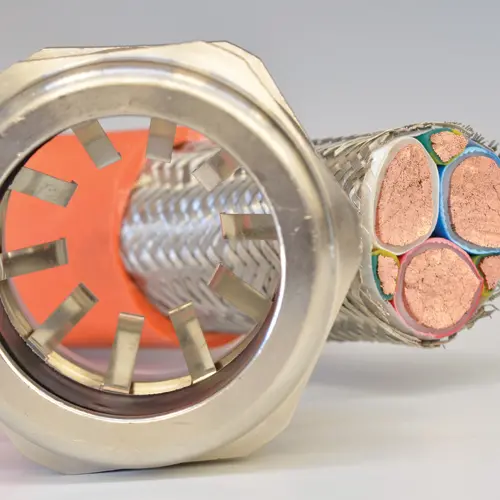

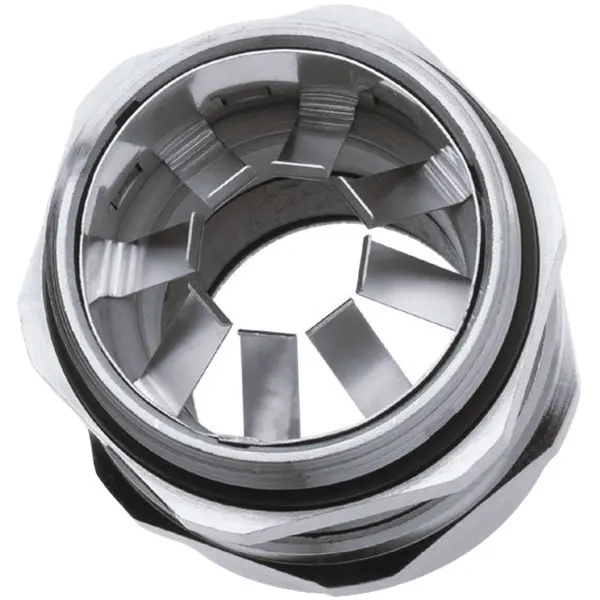

EMC M Type Metallic Cable Glands
- Product Details
Material: Brass with nickel plated
Claw: Nylon plastic(PA),UL94-V2
Sealing: NBR
O-Sealing ring: NBR
Protection Class: IP68 (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Range of temperature: -40℃~100℃
Oder Information
KLS8-0626M-M12x1.5
0626M: EMC M Type Metallic Cable Glands
M12x1.5: Item No.
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| M12x1.5 | 3-6.5 | 12 | 12-12.2 | 5 | 18 | 14 |
| M14x1.5 | 4-8 | 14 | 14-14.2 | 6 | 20 | 17 |
| M16x1.5 | 4-8 | 16 | 16-16.2 | 6 | 20 | 17 |
| M18x1.5 | 5-10 | 18 | 18-18.2 | 6 | 21 | 20 |
| M20x1.5 | 6-12 | 20 | 20-20.2 | 6.5 | 22 | 22 |
| M22x1.5 | 10-14 | 22 | 22-22.2 | 6.5 | 23 | 24 |
| M24x1.5 | 10-14 | 24 | 24-24.2 | 6.5 | 23 | 24/27 |
| M25x1.5 | 13-18 | 25 | 25-25..2 | 7 | 25 | 30 |
| M27x1.5 | 13-18 | 27 | 27-27.2 | 7 | 25 | 30 |
| M28x1.5 | 13-18 | 28 | 28-28.2 | 7 | 25 | 30 |
| M32x1.5 | 18-25 | 32 | 32-32.2 | 8 | 30 | 40 |
| M40x1.5 | 22-32 | 40 | 40-40.2 | 8 | 35 | 50 |
| M50x1.5 | 32-38 | 50 | 50-50.2 | 9 | 38 | 57 |
| M63x1.5 | 37-44 | 63 | 63-63.2 | 10 | 40 | 64 |
