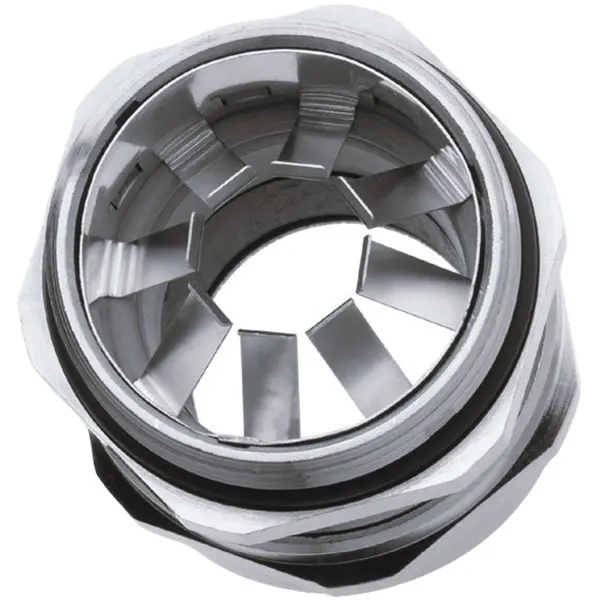

EMC G Type Metallic Cable Glands
- Product Details
Material:Brass with nickel plated
Claw: Nylon plastic(PA),UL94-V2
Sealing: NBR
O-Sealing ring: NBR
Protection Class: IP68 (the wire/cable is in clamping range, and assemble O-Ring on the groove)
Range of temperature: -40℃~100℃
Oder Information
KLS8-0626G-G1/4
0626G: EMC G Type Metallic Cable Glands
G1/4: Item No.
| Item No. | Cable Range >IØI< (mm) |
Outer diameter of thread (mm) |
Mounting hole diameter (mm) |
Thread length L(mm) |
Joint length H(mm) |
Wrench diameter (MM) |
| G1/4″ | 3-6.5 | 13.1 | 13.1~13.4 | 7 | 18 | 14 |
| G3/8″ | 4-8 | 16.6 | 16.6~16.9 | 8 | 20 | 18 |
| G1/2″ | 6-12 | 22 | 20.9~21.2 | 8 | 22 | 22 |
| G3/4″ | 13-18 | 26.4 | 26.4~26.7 | 8 | 25 | 30 |
| G1″ | 18-25 | 33.2 | 33.2~33.5 | 10 | 30 | 40 |
| G1_1/4″ | 22-32 | 41.9 | 41.9~42.2 | 10 | 35 | 50 |
| G1_1/2″ | 32-38 | 48.8 | 47.8~48.1 | 10 | 38 | 57 |
| G2″ | 37-44 | 59.6 | 59.6~59.9 | 12 | 40 | 64 |
