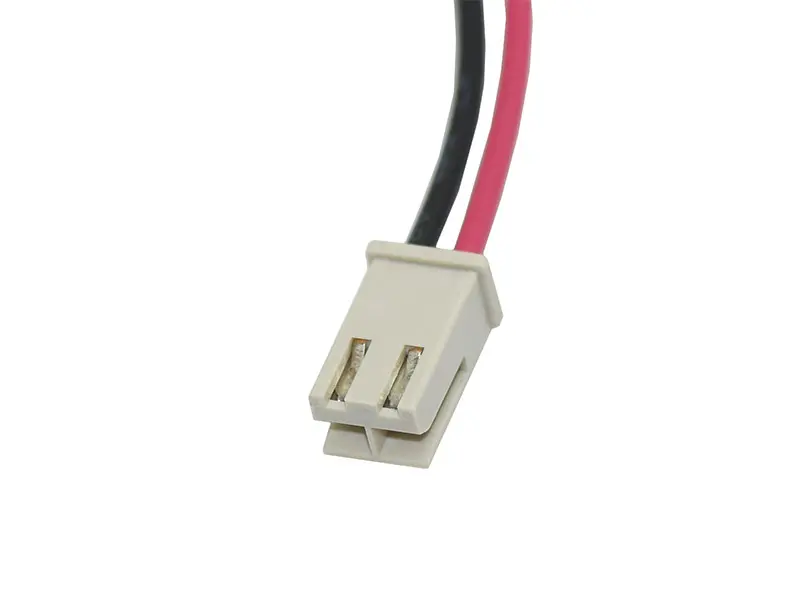

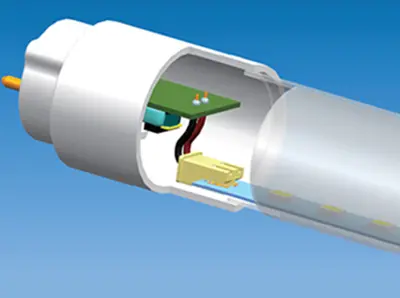

EDGE Connector for T8 LED Lighting

Model: KLS2-L72
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

MATERIAL
Insulator:PA46,UL94V-0,Beige
Contacts:Brass,Tin-plated

Main Specifications
Poles:02P
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltage:250V AC DC
Rated Current:3.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -40 ° C ~ + 110° C

PDF
