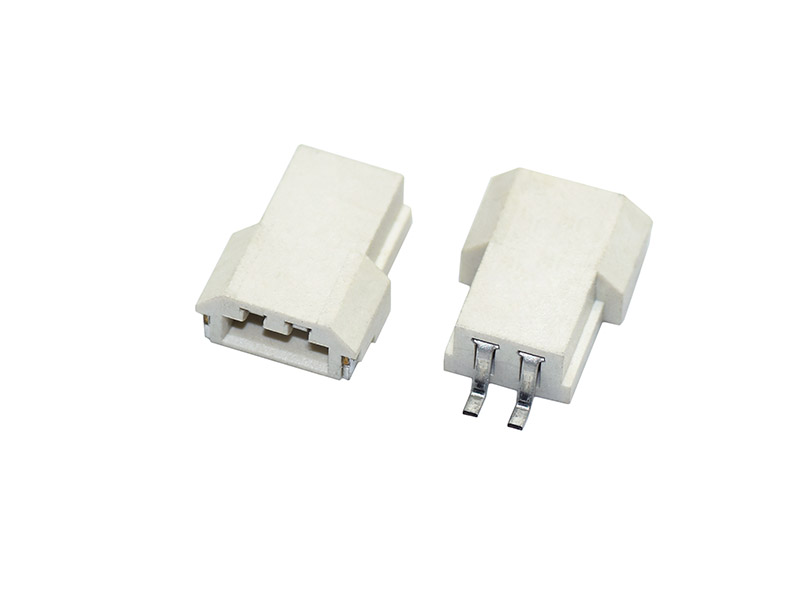

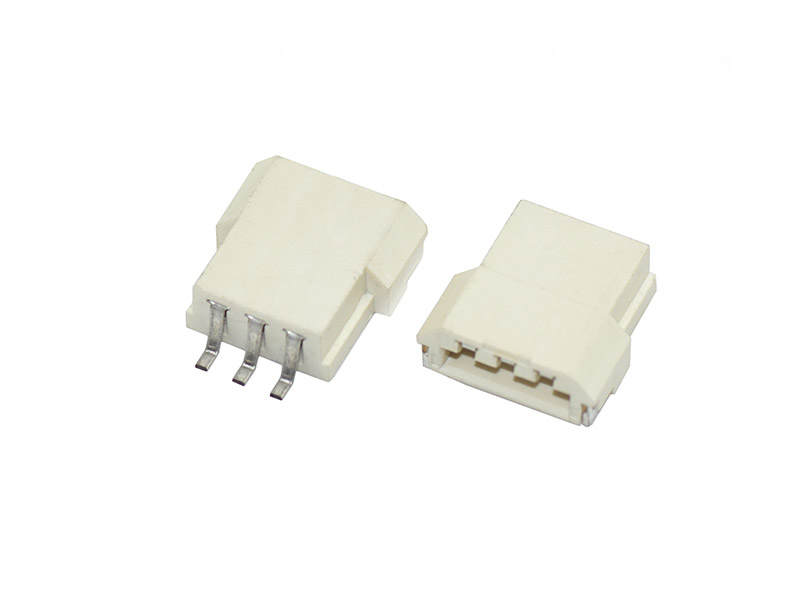

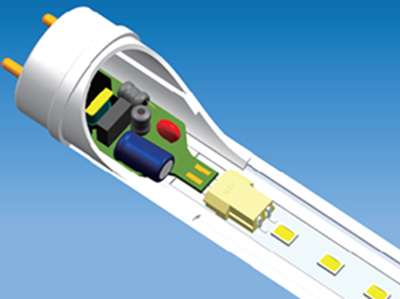

EDGE Connector for T8 LED Lighting

  • Model: KLS2-L31
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

MATERIAL
Insulator:LCP,UL94V-0,BEIGE
Contacts:Phosphor Bronze,Tin-plated
Solder tab:Brass,Tin-plated

Main Specifications
Poles:02~03P
Thickness:1.0~1.2mm
Contact Resistance:≤20mΩ
Insulation Resistance:≥800MΩ
Rated Voltage:250V AC DC
Rated Current:2.0A AC DC
Withstanding Voltage:800V AC/minute
Temperature Range:   -25 ° C ~ + 105° C
