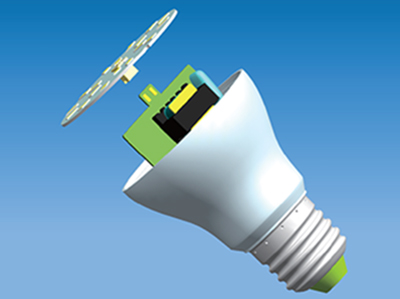

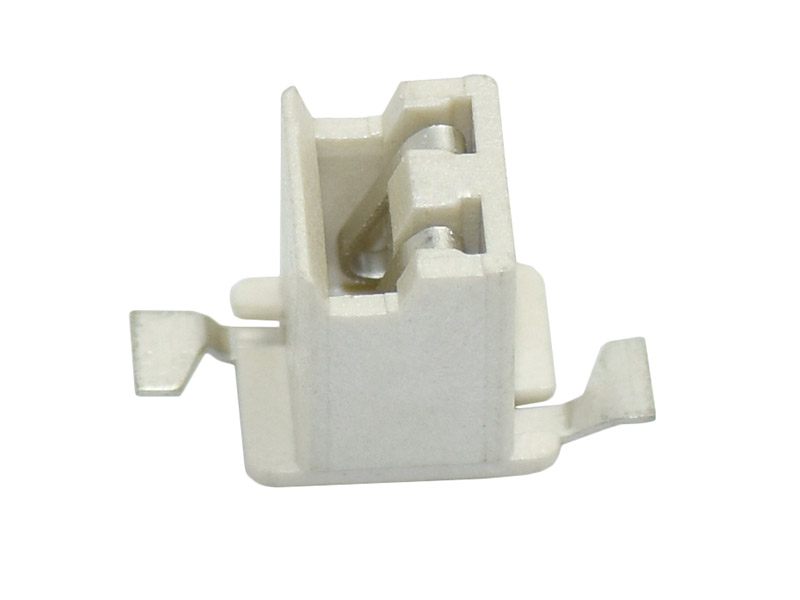

EDGE Connector for LED Lighting,pitch 2.5mm
- Product Details
MATERIAL
Insulator:LCP,UL94V-0,Beige
Contacts:Phosphor Bronze,Tin-plated
Main Specifications
Thickness:1.0mm to 1.2mm
Contact Resistance:≤20mΩ
Insulation Resistance:≥1000MΩ
Rated Voltag250V AC DC
Rated Current:1.0A AC DC
Withstanding Voltage:1000V AC/minute
Temperature Range: -40 ° C ~ + 120° C
