EC8 battery connector Male & Fema

  • Model: KLS1-XT02-EC8
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

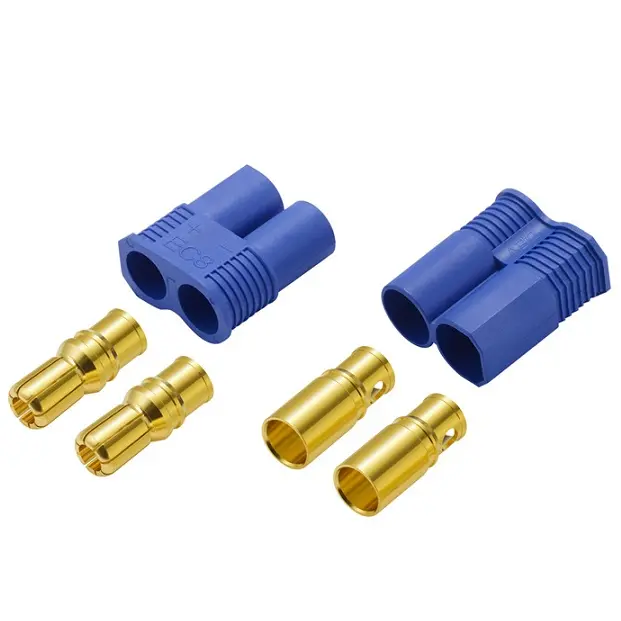

EC8 battery connector Male & Female

Product model:

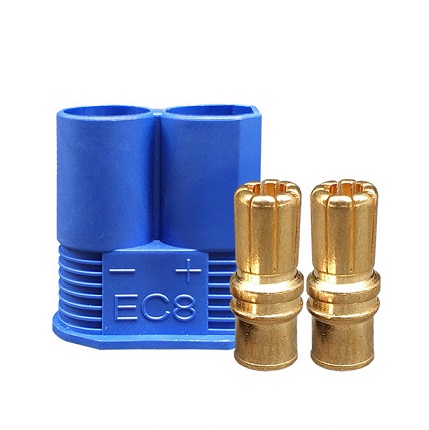

Male housing: KLS1-XT02-EC8-MH-2

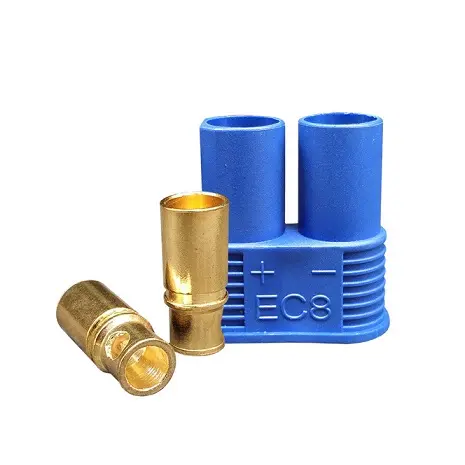

Female housing: KLS1-XT02-EC8-FH-2
Male terminal: KLS1-XT02-EC8-MT
Female terminal: KLS1-XT02-EC8-FT
Application:Lithium battery / controller / charger
Product color: Blue Metal material: Brass Gold Plated
Instantaneous current: 160A Recommended wire gauge: 6 # / 8 # 10#
Rated current: 80A Insulation material: PA66
Contact resistance: 0.3m Ω Operating temperature: – 20 ℃ to 120 ℃
Withstand voltage: DC 500V Plug times:1000 times
Flame retardant grade: UL94-V2
