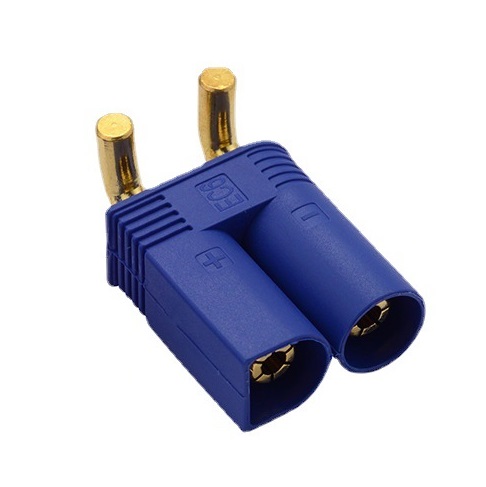

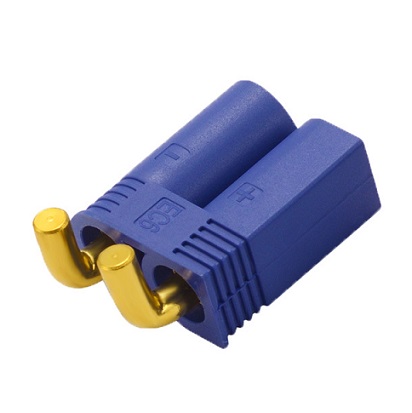

EC6 battery connector Female Right Angle

  • Model: KLS1-XT03-EC6
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details

EC6 battery connector Female Right Angle

Female:KLS1-XT03-EC6 Application:Lithium battery / controller / charger
Product color: Blue Metal material: Brass Gold Plated
Instantaneous current: 100A Recommended wire gauge: 10 # / 12 # / 14#
Rated current: 50A Insulation material: PA66
Contact resistance: 0.4m Ω Operating temperature: – 20 ℃ to 120 ℃
Withstand voltage: DC 500V Plug times:1000 times
Flame retardant grade: UL94-V2
