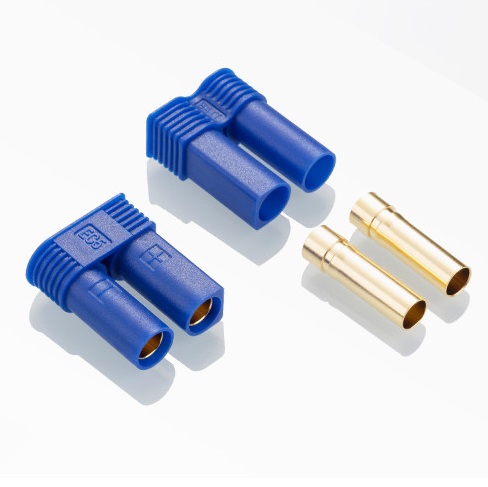

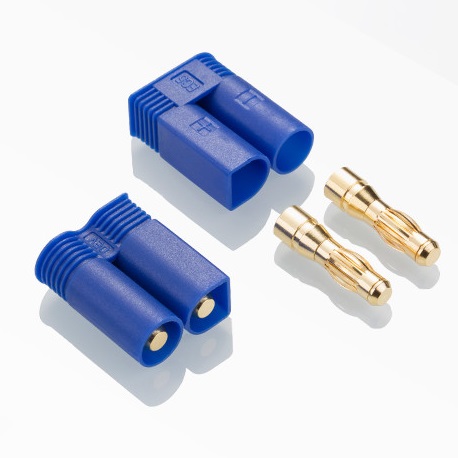

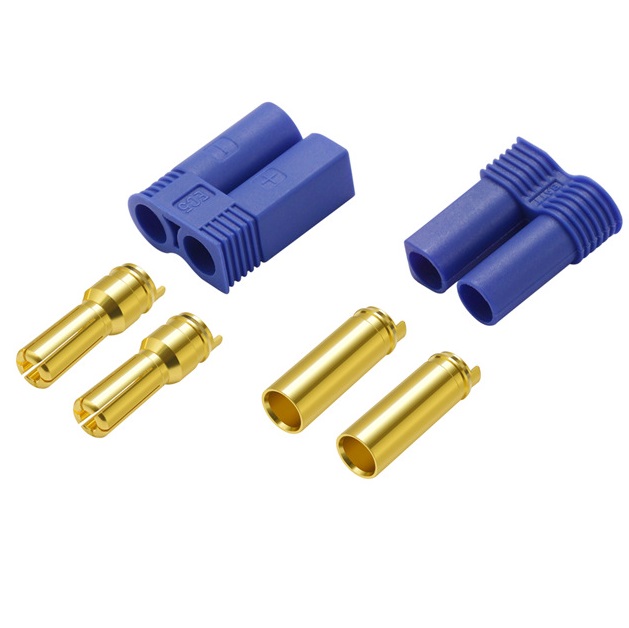

EC5 battery connector Male & Female
Product model: Male housing:KLS1-XT02-EC5-MH-2 Female housing:KLS1-XT02-EC5-FH-2 Male terminal:KLS1-XT02-EC5-MT Female terminal:KLS1-XT02-EC5-FT |
Application:Lithium battery / controller / charger |
Product color: Blue | Metal material: Brass Gold Plated |
Instantaneous current: 90A | Recommended wire gauge: 10 # / 12 # / 14# |
Rated current: 40A | Insulation material: PA66 |
Contact resistance: 0.4m Ω | Operating temperature: – 20 ℃ to 120 ℃ |
Withstand voltage: DC 500V | Plug times:1000 times |
Flame retardant grade: UL94-V2 |
