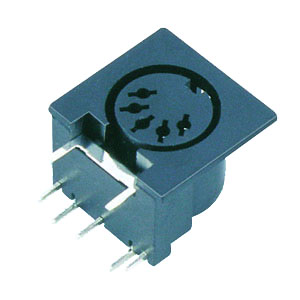

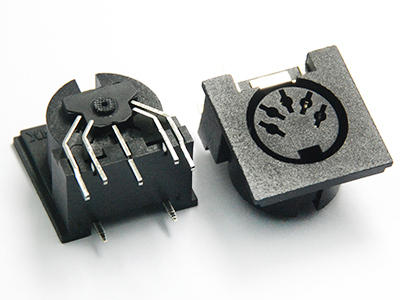

DS Terminal Series

  • Model: KLS1-D103
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

Material:
Base:PBT UL 94V-0
Contact:H62 Brass
Environmental:
Operating Temperature:-25 C ~ + 70 C
Electrical:
Rated Load:2A 100V AC
Dielectric Withstanding:500V AC(50Hz)/1min
Insulation Resistance:≥100MΩ
Contact Resistance:≤30mΩ
Insertion and Extraction Force:10-50N
Life:≥5000
