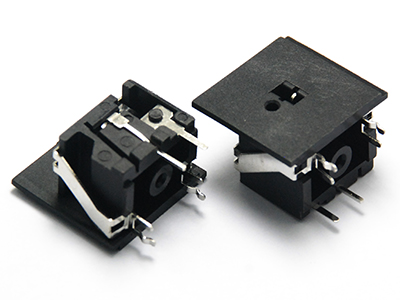

DS Terminal Series

Model: KLS1-DS-2-02
MOQ: 1000 PCS
Payment: L/C, D/A, D/P, T/T
Place_of_Origin China
Delivery_Time: 10 days

Inquiry

Product Details
PDF

Material:
Base:PBT UL 94V-0
Contact:H62 Brass
Environmental:
Operating Temperature:-22 C ~ + 70 C
Electrical:
Rated Load:DC 30V 2A
Dielectric Withstanding:AC250V(50Hz)/min
Insulation Resistance:≥100MΩ
CONTACT RESISTANCE:≤0.03Ω
Insertion and Extraction Force:5-35N
Life:5000

PDF

KLS1-DS-2-02.pdf
