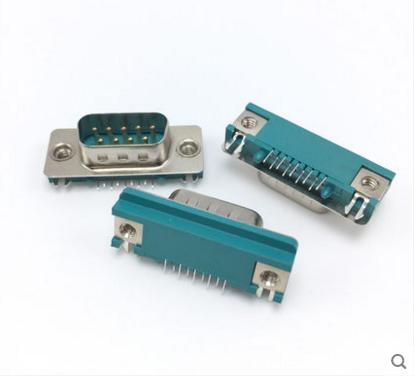

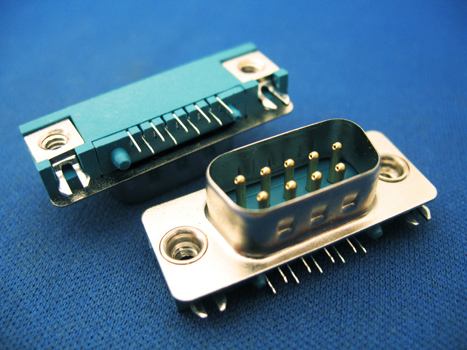

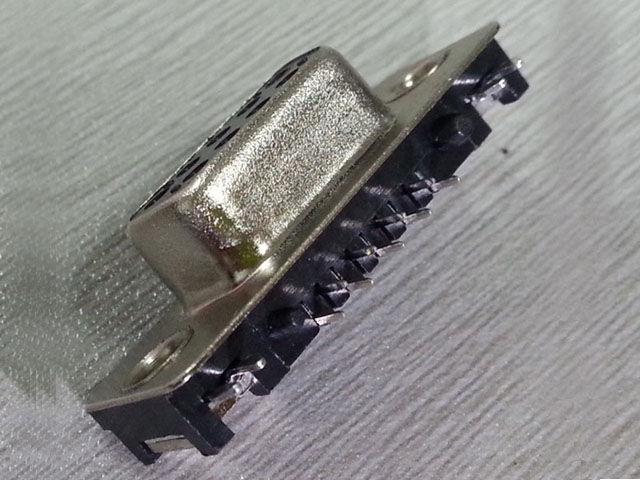

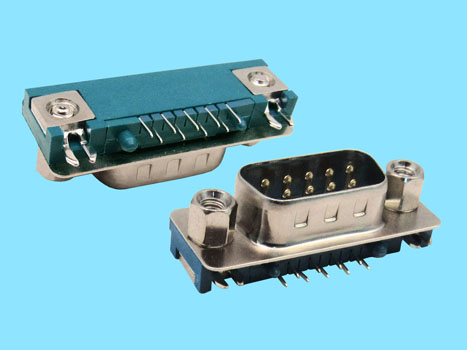

DR 2 Row SlimType D-SUB Connector 9P Male Female Right angle

Order Information
KLS1-615-09-M-L
Type:615 Or 615C
09-No.of 9pins
M-Male    F-Female
L-Blue    B-Black  E-Green

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating
Electrical Characteristics:
Current Rating:            3 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     25mΩ Max. Initial
Operating Temperature: -55°C~+105°C
