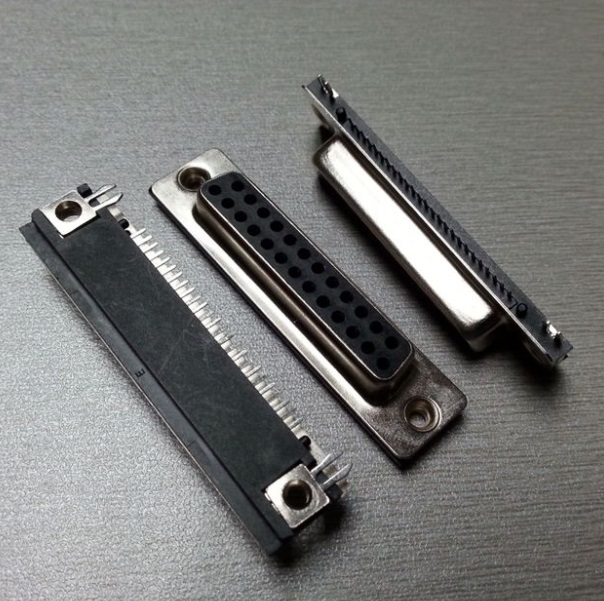

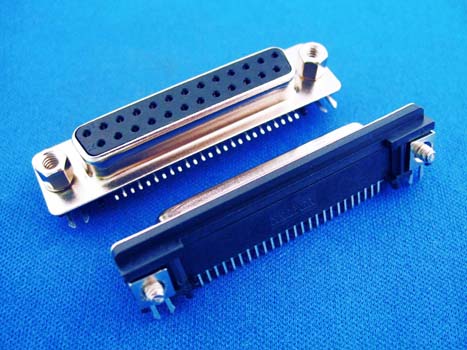

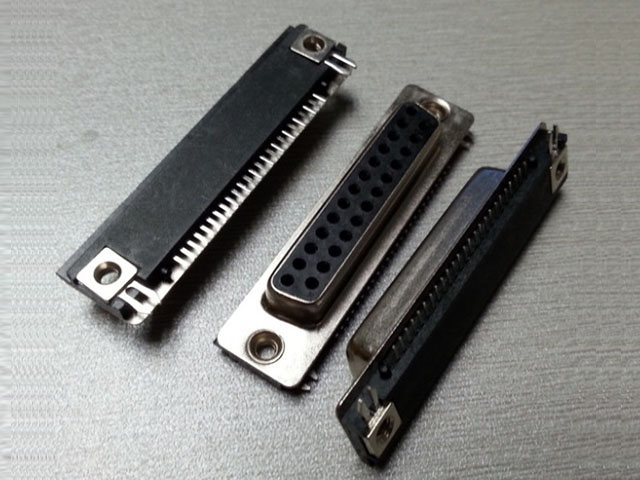

DR 2 Row SlimType D-SUB Connector 9P 25P Female,Right angle

Order Information
KLS1-618C-XX-M-B
Type:618 Or 618C
XX-No.of 9~25pins
F-Female
L-Blue    B-Black

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating
Shell: Steel, Nickel Plating

Electrical Characteristics:
Current Rating:            3 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     25mΩ Max. Initial
Operating Temperature: -55°C~+105°C
