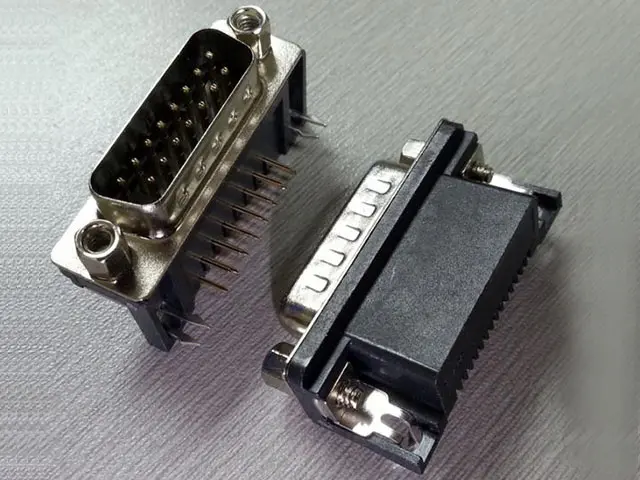

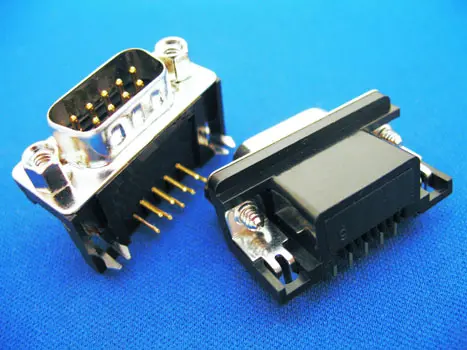

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,9.4mm

  • Model: KLS1-515 & KLS1-515C
  • MOQ: 1000 PCS
  • Payment: L/C, D/A, D/P, T/T
  • Place_of_Origin China
  • Delivery_Time: 10 days
  • Product Details
  • PDF

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,9.4mm

Order Information
KLS1-515C-XX-M-B
Type:515 Or 515C
XX-No.of 09,15,25,37pins
M-Male    F-Female
B-Black

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating

Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
