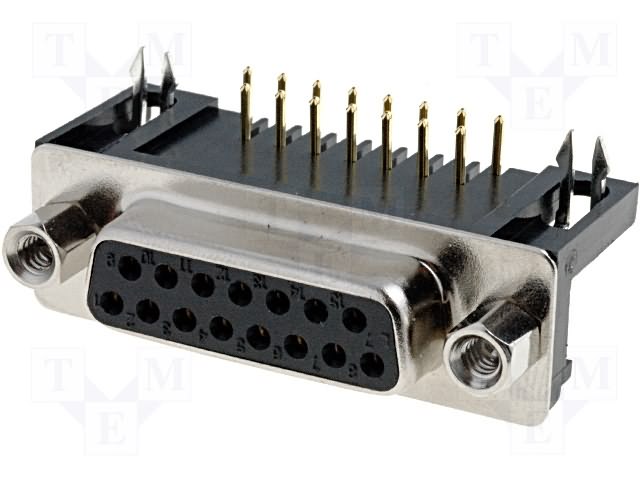

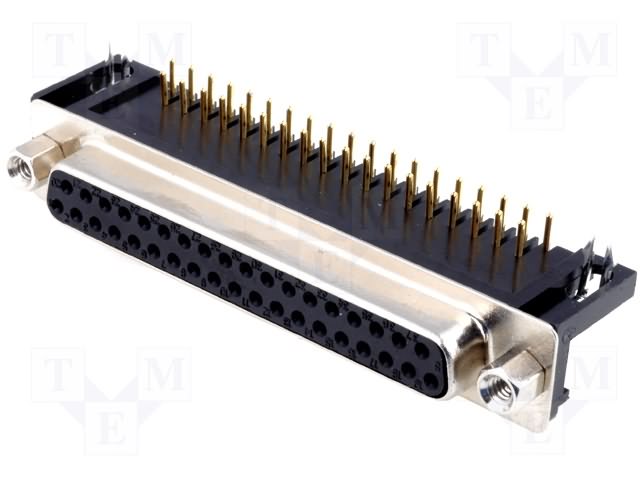

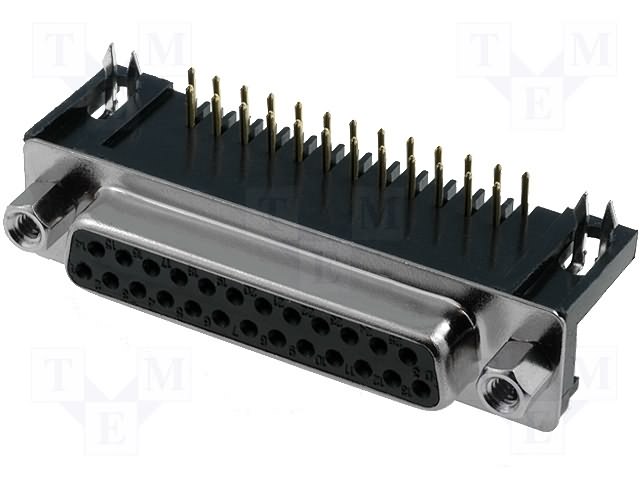

DR 2 Row D-SUB Connector,9P 15P 25P 37P Male Female Right angle,8.1mm

Order Information
KLS1-215-XX-M-B
Type:215 Or 215B
XX-No.of 09,15,25,37pins
M-Male    F-Female
B-Black    L-Blue

Material:

Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating

Electrical Characteristics:

Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -55°C~+105°C
