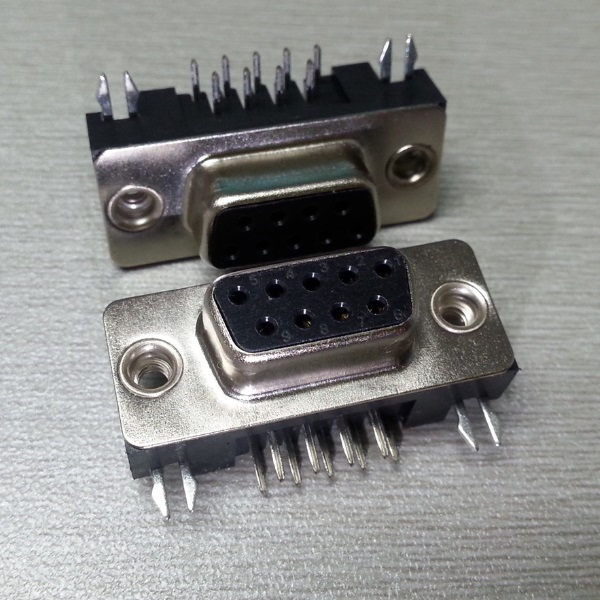

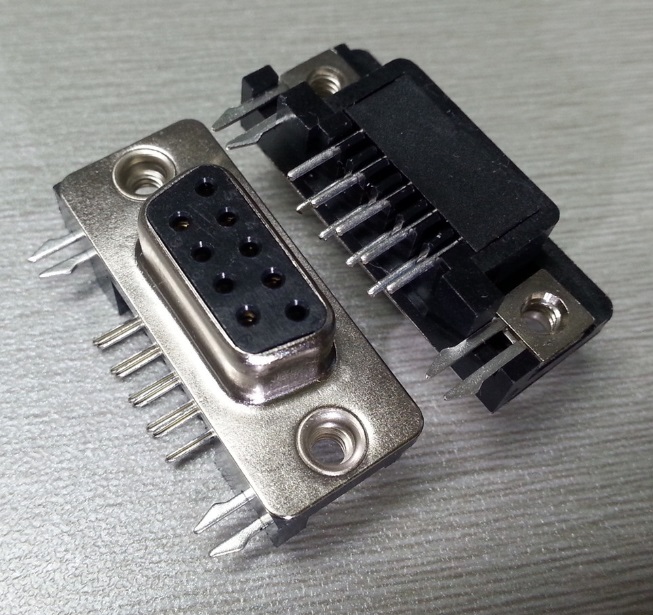

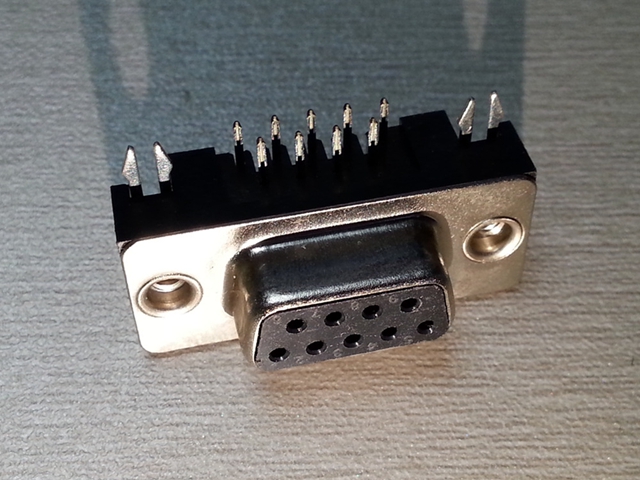

DR 2 Row D-SUB Connector 9P Male Female Right angle,5.08mm

Order Information
KLS1-417-09-M-L
Type:417 Or 417B
09-No.of 9pins
M-Male    F-Female
L-Blue    B-Black

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating

Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial

Operating Temperature: -55°C~+105°C

KLS1-417KLS1-417B.pdf
