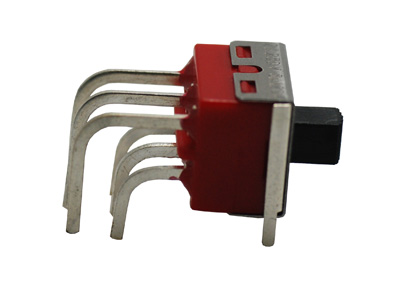

DPDT Miniature Slide Switches
- Product Details
Materials:
Slide Handle:Nylon
Housing:Stainless Steel
Case:Diallyl phthalate(DAP)
Contact and Terminal:Copper alloy,silver plated.
Specifications:
Contact Rating:5A@120 VAC or 28 VDC;3A@250 VAC
Electrical Life:30000 make and break cycles at full load
Contact Resistance:10mΩ max.initial@2-4 VDC,100mA
Insulation Resistance:1000MΩ min.
Dielectric Strength:1500 V RMS@sea level
Operating Temperature:-30ºC to +85ºC
