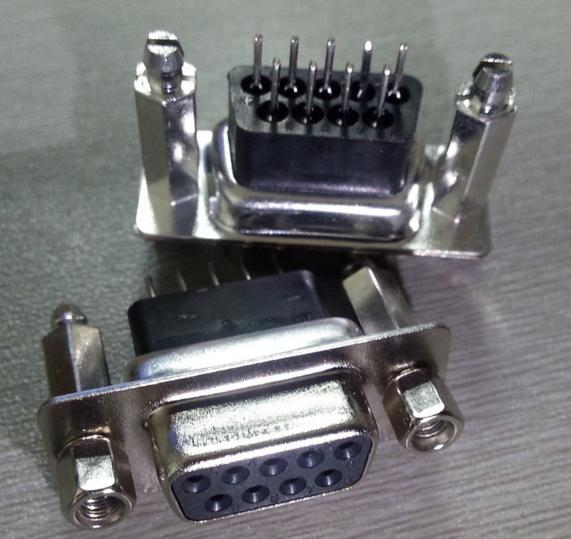

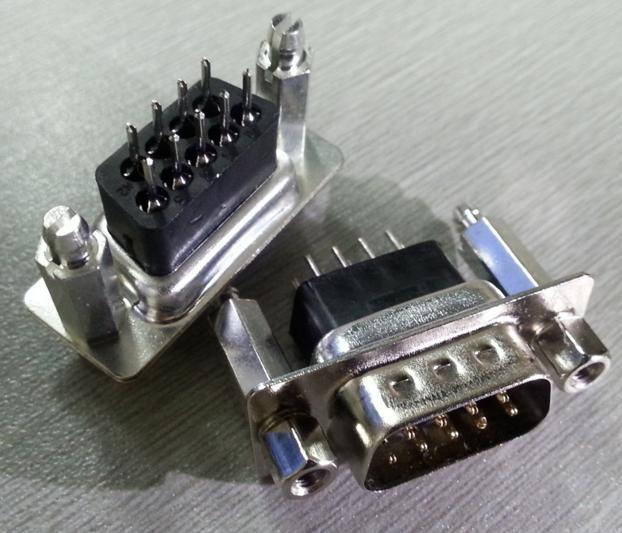

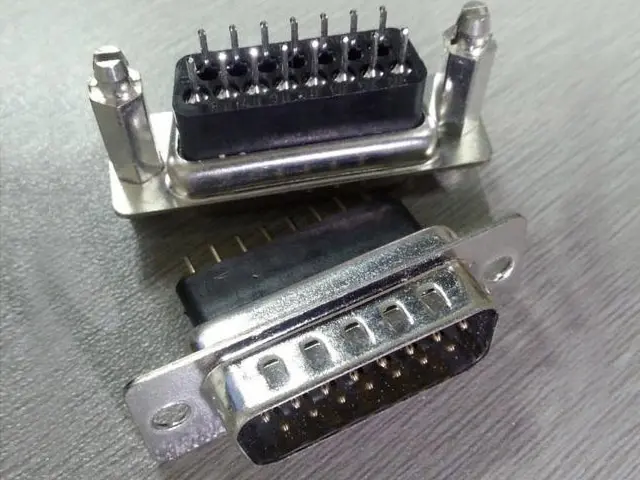

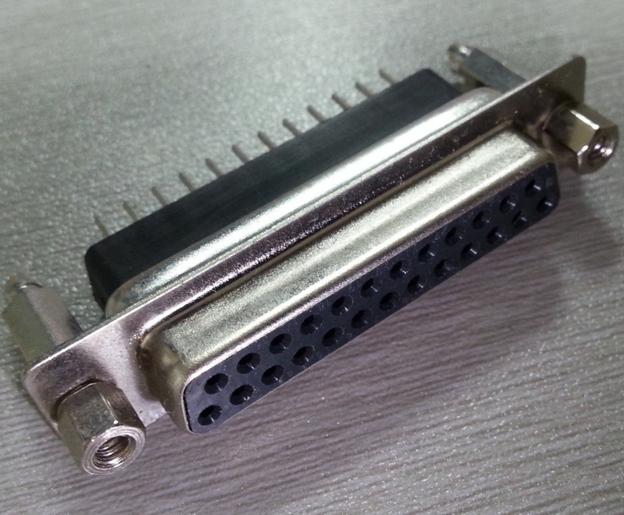

DP 2 Row D-SUB Connector,PCB Riveting Type,9 15 25 37 pins Male Female

Order Information
KLS1-171-XX-M-B
Type:171,171B,171C
XX-No.of 09,15,25,37pins
M-Male    F-Female
L-Blue    B-Black  W-White

Material:
Housing: PBT+30% Glass filled ,UL94V-0
Contacts: Brass ,Gold Plating or
              Gold Plating on Contact Arer,
              Tin on Solder Tail.
Shell: Steel, Nickel Plating

Electrical Characteristics:
Current Rating:            5 AMP
Insulator Resistance:   1000MΩ Min. at DC 500V
Withstanding Voltage:  500V AC (rms) for 1 minute
Contact Resistance:     20mΩ Max. Initial
Operating Temperature: -40°C~+105°C
