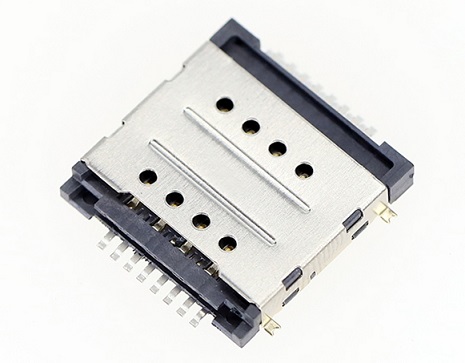

Double SIM Card Connector,PUSH PULL,H3.0mm
- Product Details
Double SIM Card Connector,PUSH PULL,H3.0mm
Material:
Housing:Hi-TEMP Plastic,UL94V-0.Black.
Terminal:Copper alloy
Shell:Stainless Steel
Finish:
Terminal:Au Plated on the contact area ,
Matte tin plated on the solder
tails underplated over nickel
Shell:Au Plated on the solder tails
underplated over nickel
Electrical:
Contact Resistance:50mΩ Max
Withstanding Voltage:350V AC rms for 1 minut
Insulation resistance:1000MΩ Min
Durability:3000 cycles
Normal force:20gf / PIN Min
